OMC::DrawingVectorJoint Class Reference

Detailed Description

The joint defined by the begginning, end or intersection of a stroke.

Public Member Functions
OMC::DrawingVectorArtLayer *	drawing () const
	Returns the OMC::DrawingVectorArtLayer* object that owns this joint. More...
OMC::DrawingVectorArtLayer *	layer () const
	Returns the OMC::DrawingVectorLayer* object that owns this joint. More...
OMC::DrawingVectorStroke *	stroke () const
	Returns the OMC::DrawingVectorStroke* object to which this joint is related. More...
OMC::DrawingVectorJoint *	right () const
	Returns the OMC::DrawingVectorJoint* object at a right turn to this joint. More...
OMC::DrawingVectorJoint *	left () const
	Returns the OMC::DrawingVectorJoint* object at a left turn to this joint. More...
OMC::DrawingVectorJoint *	joint_opposite () const
	Returns the OMC::DrawingVectorJoint* object at the other extremity of this joint's stroke. More...

Public Attributes
QList< OMC::DrawingVectorContour * >	contours
	The list of contours shared by the joint.
int	degree
	The degree of the joint.
QString	extremity
	The joint extremity at the current stroke. Valid extremities are "Head" and "Tail".
bool	empty
	True if the joint is empty.
OMC::Point2d *	position
OMC::DrawingVectorColour *	colour_inside
	The colour of the inside of the joint. More...
OMC::DrawingVectorColour *	colour_outside
	The colour of the outside of the joint. More...
OMC::Vector2d *	tangent
	The tangent of the joint. More...

Member Function Documentation

drawing()

OMC::DrawingVectorArtLayer* OMC::DrawingVectorJoint::drawing

(

)

const

Returns the OMC::DrawingVectorArtLayer* object that owns this joint.

Returns

The OMC::DrawingVectorArtLayer* object that owns the joint.

joint_opposite()

OMC::DrawingVectorJoint* OMC::DrawingVectorJoint::joint_opposite

(

)

const

Returns the OMC::DrawingVectorJoint* object at the other extremity of this joint's stroke.

Returns

The OMC::DrawingVectorJoint* object at a left turn to this joint.

layer()

OMC::DrawingVectorArtLayer* OMC::DrawingVectorJoint::layer

(

)

const

Returns the OMC::DrawingVectorLayer* object that owns this joint.

Returns

The OMC::DrawingVectorLayer* object that owns the joint.

left()

OMC::DrawingVectorJoint* OMC::DrawingVectorJoint::left

(

)

const

Returns the OMC::DrawingVectorJoint* object at a left turn to this joint.

Returns

The OMC::DrawingVectorJoint* object at a left turn to this joint.

right()

OMC::DrawingVectorJoint* OMC::DrawingVectorJoint::right

(

)

const

Returns the OMC::DrawingVectorJoint* object at a right turn to this joint.

Returns

The OMC::DrawingVectorJoint* object at a right turn to this joint.

stroke()

OMC::DrawingVectorStroke* OMC::DrawingVectorJoint::stroke

(

)

const

Returns the OMC::DrawingVectorStroke* object to which this joint is related.

Returns

The OMC::DrawingVectorStroke* object to which this joint is related.

Member Data Documentation

colour_inside

OMC::DrawingVectorJoint::colour_inside

The colour of the inside of the joint.

Provides the color of the inside of the joint as a DrawingVectorColour*.

Returns

Provides the OMC::DrawingVectorColour* of the inside of the contour.

colour_outside

OMC::DrawingVectorJoint::colour_outside

The colour of the outside of the joint.

Provides the color of the outside of the joint as a DrawingVectorColor*.

Returns

Provides the OMC::DrawingVectorColour* of the outside of the contour.

position

OMC::DrawingVectorJoint::position

The OMC::Point2d* position of the joint in the drawing layer.

tangent

OMC::DrawingVectorJoint::tangent

The tangent of the joint.

Provides the tangent of the joint, as provided by the current stroke at the given extremity.

Returns

Provides the OMC::MathVector2d* of the outside of the joint.

Inheritance diagram for OMC::DrawingVectorJoint:

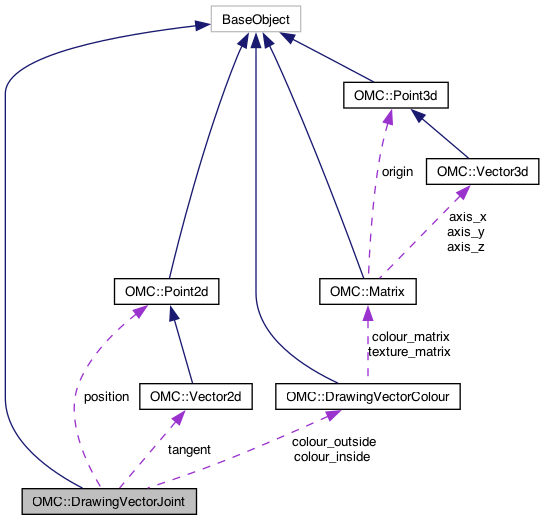

Collaboration diagram for OMC::DrawingVectorJoint:
