Detailed Description

A object providing a reference to a stroke in a OMC::DrawingVectorLayer*.

A stroke defines a bezier path in a drawing that can be have a linestyle or fill applied. The strokes form contours that can be filled and joints at intersections.

Detail from a Stroke

import traceback
from ToonBoom import harmony
sess = harmony.session()
proj = sess.project
scene = proj.scene
#Drawing Node to modify.
drawing_node = scene.nodes["Top/Drawing"]
at_frame = 1
vector_drawing = False
#Using the drawing attribute to get the current vector drawing.
try:
  drawing_attr = drawing_node.attributes["DRAWING"]
  element = drawing_attr.element
  element_drawing = element.drawings[ drawing_attr.drawing.value(at_frame) ]
  vector_drawing = element_drawing.drawing
except:
  traceback.print_exc()
if vector_drawing:
  line_art = vector_drawing["line"]
  if line_art:
    for layer in line_art:
      if layer.type == "Vector":
        print( "Vector Layer" )
        strokes = layer.strokes
        for stroke in strokes:
          bezierpath = stroke.bezier_path
          print( "   Bezier Path: %s"%(bezierpath.bezier_count) )
          bounding_box = stroke.bounding_box
          print( "   Stroke Bounds: %s,%s (x,y) -- %s,%s (width,height)"%(bounding_box.x, bounding_box.y, bounding_box.width, bounding_box.height) )
          if stroke.colour_left:
            print( "   Colour Left: %s"%(stroke.colour_left.colour_id) )
          if stroke.colour_right:
            print( "   Colour Right: %s"%(stroke.colour_right.colour_id) )

Public Member Functions
OMC::DrawingVectorArtLayer *	drawing () const
	Returns the OMC::DrawingVectorArtLayer* object that owns this stroke. More...

OMC::DrawingVectorLayer *	layer () const
	Returns the OMC::DrawingVectorLayer* object that owns this stroke. More...

QList< OMC::DrawingVectorStroke * >	strokes_shared () const
	Provides a list of all strokes that share the bezier path. More...

QList< OMC::DrawingVectorStroke * >	strokes_shared_thickness () const
	Provides a list of all strokes that share the thickness binder. More...

bool	continuous (OMC::DrawingVectorStroke *stroke)
	Identifies if a stroke is continuous with this stroke. More...

bool	thickness_sharing (OMC::DrawingVectorStroke *stroke)
	Identifies if the stroke shares its thickness with another. More...

Public Attributes
OMC::BezierPath	bezier_path

OMC::AllocatedRect2d *	bounding_box
	The bounding-box of the stroke.

OMC::AllocatedRect2d *	bounding_box_visible
	The bounding-box of the drawing's visible content.

OMC::AllocatedRect2d *	bounding_box_inner
	The bounding-box of the drawing's inner content.

OMC::DrawingVectorColour *	colour_left
	The color of the stroke on the left side. More...

OMC::DrawingVectorColour *	colour_right
	The color of the stroke on the right side. More...

OMC::DrawingVectorContour *	contour_left
	The contour of the stroke on the left side. More...

OMC::DrawingVectorContour *	contour_right
	The contour of the stroke on the right side. More...

OMC::Point2d *	tail
	The tail position of the stroke, as a OMC::Point2d object.

bool	tail_cut
	True if the tail is cut.

OMC::Vector2d	tail_tangent
	The tail tangent as a OMC::Vector2d.

double	left_thickness_tangent_from
	The left thickness tangent on the "from" direction.

double	left_thickness_tangent_to
	The left thickness tangent on the "to" direction.

OMC::Point2d *	head
	The head position of the stroke, as a OMC::Point2d object.

QString	tip_type_from
	The tip type of the 'from' portion of the stroke. More...

QString	tip_type_to
	The tip type of the 'to' portion of the stroke. More...

OMC::Vector2d	head_tangent
	The head tangent as a OMC::Vector2d.

double	right_thickness_tangent_from
	The right thickness tangent on the "from" direction.

double	right_thickness_tangent_to
	The right thickness tangent on the "to" direction.

int64_t	unique_id
	The unique ID of the stroke.

OMC::DrawingVectorLineStyle *	line_style

OMC::DrawingVectorThickness *	thickness
	The OMC::DrawingVectorThickness* object that defines the thickness of the stroke. More...

double	thickness_max_visible

bool	degenerate
	True if the stroke is degenerate; all points lie on the same line.

bool	thickness_valid
	True if the stroke has a valid thickness.

Member Function Documentation

◆ continuous()

bool OMC::DrawingVectorStroke::continuous ( OMC::DrawingVectorStroke * stroke )

Identifies if a stroke is continuous with this stroke.

A stroke is continuous if the following is true: -this.tail == stroke.head -this.lineType == stroke.lineType -this.thicknessBinder.isContinuous(stroke.thicknessBinder)

Returns: True if the the provided stroke is continuous with this stroke.

◆ drawing()

OMC::DrawingVectorArtLayer* OMC::DrawingVectorStroke::drawing ( ) const

Returns the OMC::DrawingVectorArtLayer* object that owns this stroke.

Returns: The OMC::DrawingVectorArtLayer* object that owns the stroke.

◆ layer()

OMC::DrawingVectorLayer* OMC::DrawingVectorStroke::layer ( ) const

Returns the OMC::DrawingVectorLayer* object that owns this stroke.

Returns: The OMC::DrawingVectorLayer* object that owns the stroke.

◆ strokes_shared()

QList<OMC::DrawingVectorStroke*> OMC::DrawingVectorStroke::strokes_shared ( ) const

Provides a list of all strokes that share the bezier path.

Returns: A list of all strokes that share the given bezier path.

◆ strokes_shared_thickness()

QList<OMC::DrawingVectorStroke*> OMC::DrawingVectorStroke::strokes_shared_thickness ( ) const

Provides a list of all strokes that share the thickness binder.

Returns: A list of all strokes that share the given thickness binder.

◆ thickness_sharing()

bool OMC::DrawingVectorStroke::thickness_sharing ( OMC::DrawingVectorStroke * stroke )

Identifies if the stroke shares its thickness with another.

Identifies if the stroke shares the thickness with the provided stroke.

Returns: True if the provided stroke and this stroke share a thickness.

Member Data Documentation

◆ bezier_path

OMC::DrawingVectorStroke::bezier_path

Get the bezier path that defines the stroke. This path is a value object and changes to it must be reingested into the drawing.

Detail from a Stroke's Bezier Path

import traceback
from ToonBoom import harmony
sess = harmony.session()
proj = sess.project
scene = proj.scene
#Drawing Node to modify.
drawing_node = scene.nodes["Top/Drawing"]
at_frame = 1
vector_drawing = False
#Using the drawing attribute to get the current vector drawing.
try:
  drawing_attr = drawing_node.attributes["DRAWING"]
  element = drawing_attr.element
  element_drawing = element.drawings[ drawing_attr.drawing.value(at_frame) ]
  vector_drawing = element_drawing.drawing
except:
  traceback.print_exc()
if vector_drawing:
  line_art = vector_drawing["line"]
  if line_art:
    for layer in line_art:
      if layer.type == "Vector":
        print( "Vector Layer" )
        strokes = layer.strokes
        for stroke in strokes:
          bezierpath = stroke.bezier_path
          print( "   Bezier Path: %s"%(bezierpath.bezier_count) )
          #Iterate on each Bezier in the Bezier Path, print the results.
          for n in range( bezierpath.bezier_count ):
            print( "" )
            bez = bezierpath.bezier( n )
            if bez:
              for n in range( bez.degree+1 ):
                print( "       %s, %s"%(bez[n].x, bez[n].y) )

Modify a Stroke's Bezier Path

import math
import traceback
from ToonBoom import harmony
sess = harmony.session()
proj = sess.project
scene = proj.scene
#Drawing Node to modify.
drawing_node = scene.nodes["Top/Drawing"]
at_frame = 1
vector_drawing = False
#Using the drawing attribute to get the current vector drawing.
try:
  drawing_attr = drawing_node.attributes["DRAWING"]
  element = drawing_attr.element
  element_drawing = element.drawings[ drawing_attr.drawing.value(at_frame) ]
  vector_drawing = element_drawing.drawing
except:
  traceback.print_exc()
if vector_drawing:
  line_art = vector_drawing["line"]
  if line_art:

    drawingAccess = harmony.DrawingAccess()
    drawingAccess.vector_begin_operations( line_art )
    for layer in line_art:
      if layer.type == "Vector":
        print( "Vector Layer" )
        strokes = layer.strokes
        for stroke in strokes:
          bezierpath = stroke.bezier_path
          #The bezier path is a copy of the path attached to the stroke.
          #it will not change the stroke if modified, until its reassigned to that
          #stroke.
          for n,point in enumerate(bezierpath):
            #Modulate the stroke based on its X position.
            modulate = math.sin( (point.x/1875.0)*10 )*200
            point.y = point.y + modulate
            bezierpath[n] = point
          stroke.bezier_path = bezierpath
    drawingAccess.vector_end_operations()

Returns: A OMC::BezierPath object defining the bezier path used the stroke.

◆ colour_left

OMC::DrawingVectorStroke::colour_left

The color of the stroke on the left side.

Provides the color of the stroke on the given side as a DrawingVectorColor*.

Returns: Provides the OMC::DrawingVectorColour* of the stroke's side.

◆ colour_right

OMC::DrawingVectorStroke::colour_right

The color of the stroke on the right side.

Provides the color of the stroke on the given side as a DrawingVectorColor*.

Returns: Provides the OMC::DrawingVectorColour* of the stroke's side.

◆ contour_left

OMC::DrawingVectorStroke::contour_left

The contour of the stroke on the left side.

Provides the contour of the stroke on the given side as a DrawingVectorContour*.

Returns: Provides the OMC::DrawingVectorContour* of the stroke's side.

◆ contour_right

OMC::DrawingVectorStroke::contour_right

The contour of the stroke on the right side.

Provides the contour of the stroke on the given side as a DrawingVectorContour*.

Returns: Provides the OMC::DrawingVectorContour* of the stroke's side.

◆ line_style

OMC::DrawingVectorStroke::line_style

Provides the OMC::DrawingVectorLineStyle* object that defines the style of the stroke.

◆ thickness

OMC::DrawingVectorStroke::thickness

The OMC::DrawingVectorThickness* object that defines the thickness of the stroke.

Enlarge all lines

import random
import traceback
from ToonBoom import harmony
sess = harmony.session()
proj = sess.project
scene = proj.scene
#Drawing Node to modify.
drawing_node = scene.nodes["Top/Drawing"]
at_frame = 1
vector_drawing = False
#Using the drawing attribute to get the current vector drawing.
try:
  drawing_attr = drawing_node.attributes["DRAWING"]
  element = drawing_attr.element
  element_drawing = element.drawings[ drawing_attr.drawing.value(at_frame) ]
  vector_drawing = element_drawing.drawing
except:
  traceback.print_exc()
if vector_drawing:
  drawingAccess = harmony.DrawingAccess()
  proj.history.begin("Enlarging lines")
  for art_layer in vector_drawing:
    drawingAccess.vector_begin_operations( art_layer )
    for layer in art_layer:
      if layer.type == "Vector":
        for stroke in layer.strokes:
          if stroke.line_style.visible:
            thickness = stroke.thickness
            path = thickness.path
            if path:
              #Scaling the thickness path by 10.
              path.transform( 10 )
              stroke.thickness = path
    drawingAccess.vector_end_operations()
  proj.history.end()

Apply a a custom line weight

import math
import traceback
from ToonBoom import harmony
sess = harmony.session()
proj = sess.project
scene = proj.scene
#Drawing Node to modify.
drawing_node = scene.nodes["Top/Drawing"]
at_frame = 1
vector_drawing = False
#Using the drawing attribute to get the current vector drawing.
try:
  drawing_attr = drawing_node.attributes["DRAWING"]
  element = drawing_attr.element
  element_drawing = element.drawings[ drawing_attr.drawing.value(at_frame) ]
  vector_drawing = element_drawing.drawing
except:
  traceback.print_exc()
if vector_drawing:
  drawingAccess = harmony.DrawingAccess()
  proj.history.begin("Modifying lines")
  for art_layer in vector_drawing:
    drawingAccess.vector_begin_operations( art_layer )
    for layer in art_layer:
      if layer.type == "Vector":
        for stroke in layer.strokes:
          if stroke.line_style.visible:
            path = harmony.DrawingVectorThicknessPath()
            for n in range( 100 ):
              perc = float(n)/100.0
              path.insert( harmony.DrawingVectorThicknessPathPoint( perc, abs( math.sin(perc*3.14*50.0)*10 )+10 ) )
            stroke.thickness = path
    drawingAccess.vector_end_operations()
  proj.history.end()

◆ thickness_max_visible

double OMC::DrawingVectorStroke::thickness_max_visible

read

Provides the max thickness of the stroke.

◆ tip_type_from

QString OMC::DrawingVectorStroke::tip_type_from

read

The tip type of the 'from' portion of the stroke.

Valid types are as follows:

Round
Flat
Bevel
Undefined

◆ tip_type_to

QString OMC::DrawingVectorStroke::tip_type_to

read

The tip type of the 'to' portion of the stroke.

Valid types are as follows:

Round
Flat
Bevel
Undefined

Inheritance diagram for OMC::DrawingVectorStroke:

[legend]

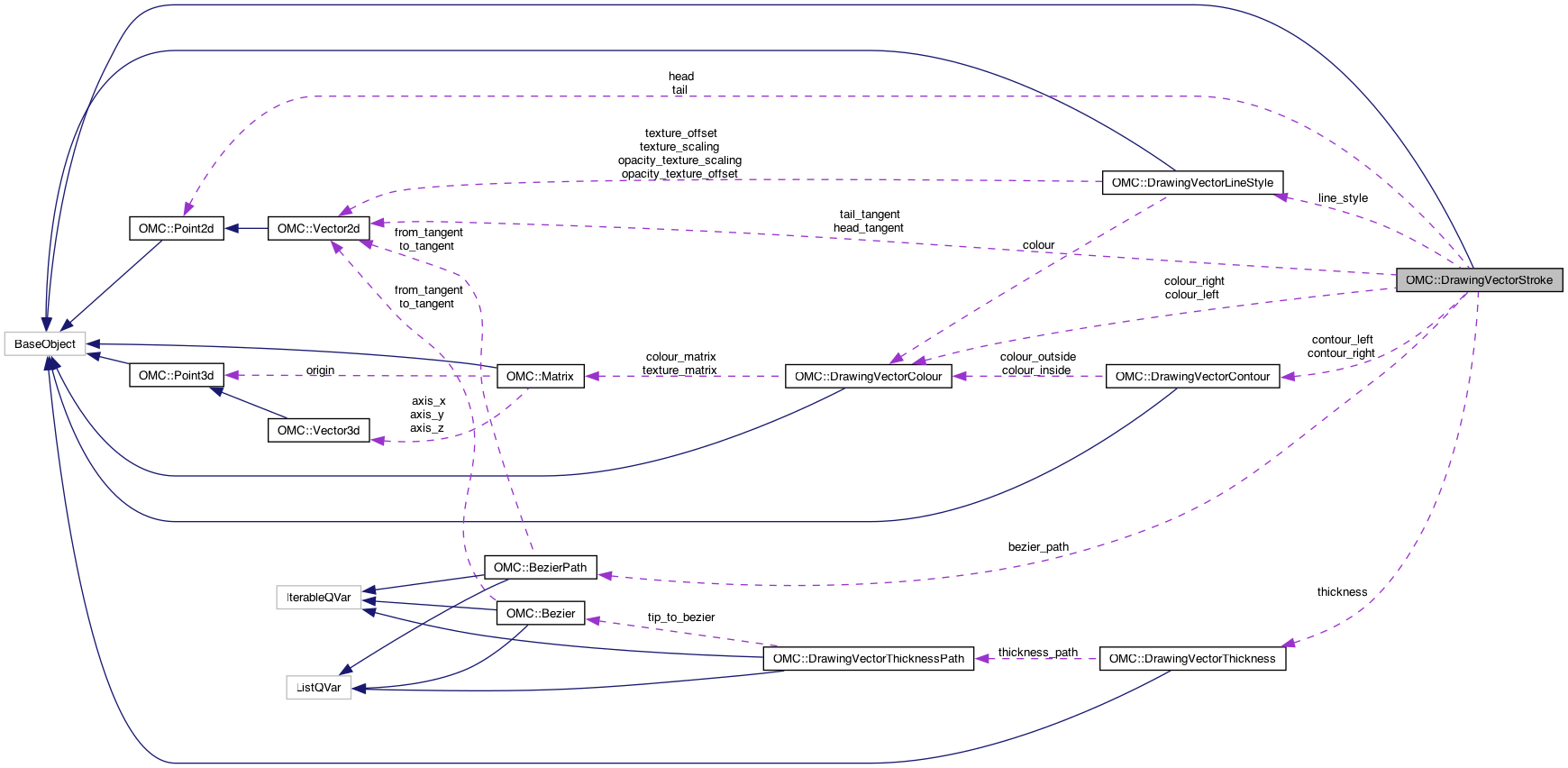

Collaboration diagram for OMC::DrawingVectorStroke:

[legend]

Detailed Description

Public Member Functions

Public Attributes

Member Function Documentation

◆ continuous()

◆ drawing()

◆ layer()

◆ strokes_shared()

◆ strokes_shared_thickness()

◆ thickness_sharing()

Member Data Documentation

◆ bezier_path

◆ colour_left

◆ colour_right

◆ contour_left

◆ contour_right

◆ line_style

◆ thickness

◆ thickness_max_visible

◆ tip_type_from

◆ tip_type_to
