OMC::Path3DColumnValue Class Reference

Detailed Description

The value provided by the list[idx] operator or iterator of a Path3DColumn.

Public Attributes
double	frame
	The frame at which this object provides a value. More...
OMC::Path3DXYZColumnValue *	value
bool	key
bool const_segment	const
double	tension
double	continuity
double	bias
BezierColumnValue *	keyframe_previous
BezierColumnValue *	keyframe_next

Member Data Documentation

bias

double OMC::Path3DColumnValue::bias

readwrite

The bias of the keyframe at the given frame if it exists, or the previous keyframe otherwise.

continuity

double OMC::Path3DColumnValue::continuity

readwrite

The continuity of the keyframe at the given frame if it exists, or the previous keyframe otherwise.

frame

double OMC::Path3DColumnValue::frame

read

The frame at which this object provides a value.

The frame number that this object represents within the column.

key

bool OMC::Path3DColumnValue::key

readwrite

Defines whether or not the frame represents a key. Setting this to true will create a key.

keyframe_next

OMC::Path3DColumnValue::keyframe_next

The next frame at which there is a keyframe present. If none are present, returns none.

keyframe_previous

OMC::Path3DColumnValue::keyframe_previous

The previous frame at which there is a keyframe present, this frame value object if its currently a keyframe.

tension

double OMC::Path3DColumnValue::tension

readwrite

The tension of the keyframe at the given frame if it exists, or the previous keyframe otherwise.

value

OMC::Path3DColumnValue::value

The 3d position value of the column at the given frame.

Inheritance diagram for OMC::Path3DColumnValue:

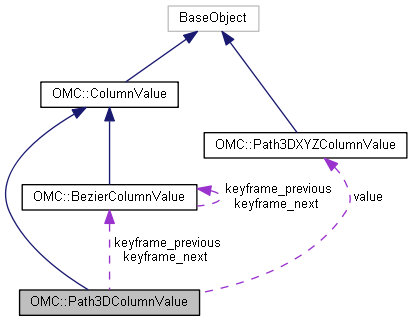

Collaboration diagram for OMC::Path3DColumnValue:
