OMC::BezierColumnValue Class Reference

Detailed Description

The value provided by a BezierColumn when accessed as a list, or iterated.

This object provides the value of a Bezier Column when accessed as a list. Print Column Values

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.

columns = scene.columns                                      #The overall node list of the scene.
bez_col = columns["BEZIER_COLUMN_NAME"]

at_frame = 1
col_frame_val = bez_col[at_frame]                            #Accessing as a list using 'at_frame'
print( "Value at frame %s : %s"%(col_frame_val.frame, col_frame_val.value) )

Public Attributes
double	frame
	The frame for which this object provides a value.
double	value
	The value at the given frame.
bool	key
	True if the given frame is a keyframe on the Bezier column.
bool	const_segment
	True to indicate that the point is on a constant segment, or false to indicate that the point is not on a constant segment.
QString	continuity
	The continuity of the curve that follows the point. One of the following values will be returned, in upper-case: SMOOTH, CORNER or STRAIGHT.
double	handle_left_x
	The X value of the left handle of a point on the column.
double	handle_left_y
	The Y value of the left handle of a point on the column.
double	handle_right_x
	The X value of the right handle of a point on the column.
double	handle_right_y
	The Y value of the right handle of a point on the column.
BezierColumnValue *	keyframe_previous
	The previous frame at which there is a keyframe present, this frame value object if its currently a keyframe.
BezierColumnValue *	keyframe_next
	The next frame at which there is a keyframe present. If none are present, returns none.

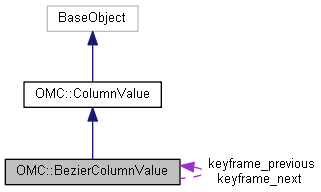

Inheritance diagram for OMC::BezierColumnValue:

Collaboration diagram for OMC::BezierColumnValue:
