Detailed Description

Provides a list of OMC::Cables attached to an OutPort.

The CableList provides a dynamic list of cables attached to an OutPort, that connect the port to an InPort of another Node.
This is provided from OutPort::cables

List Cables Attached to a Node's Port

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.
peg = scene.nodes["Top/Peg"]                                 #Find the peg node.
out_port = peg.ports_out[0]                                  #The first Out Port of a node.
cablelist = out_port.cables
print( "Number of Cables : %s"%len( cablelist ) )            #Print the amount of cables attached to the port.
for idx,cable in enumerate(cablelist):
  print( "Cable %s : %s"%(idx, cable.destination_node.path) ) #Print what the cable is connected to.

Public Member Functions
bool	contains (OMC::Cable *) const
	Identifies if the list contains the cable.

virtual std::vector< OMC::Cable * >	list () const override
	Converts the dynamic list into a concrete list of cable objects.

virtual OMC::Cable *	operator() (const QString &searchString) const
	Search for an cable in the node with a specialized search string. Search string formatting to be discussed. More...

Public Attributes
OMC::Cable *	operator[int idx]
	The CableList object is is iterable and can provide values at given index with the list operator. More...

Member Function Documentation

◆ operator()()

virtual OMC::Cable* OMC::CableList::operator() ( const QString & searchString ) const

virtual

Search for an cable in the node with a specialized search string. Search string formatting to be discussed.

Returns: The cable found at the given string.

Member Data Documentation

◆ operator[int idx]

OMC::Cable* OMC::CableList::operator[int idx]

The CableList object is is iterable and can provide values at given index with the list operator.

Print Column Values

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.
peg = scene.nodes["Top/Peg"]                                 #Find the peg node.
try:
  out_port = peg.ports_out[0]                                #The first Out Port of a node.
  cablelist = out_port.cables

  print( "Port has %s Cables"%(len(cablelist)) )
  for n in range( len(cablelist) ):
    print( "%s Cable : %s"%(n, cablelist[n].destination_node.path) )
except:
  print( "Failed, does the node or port exist?" )

Inheritance diagram for OMC::CableList:

[legend]

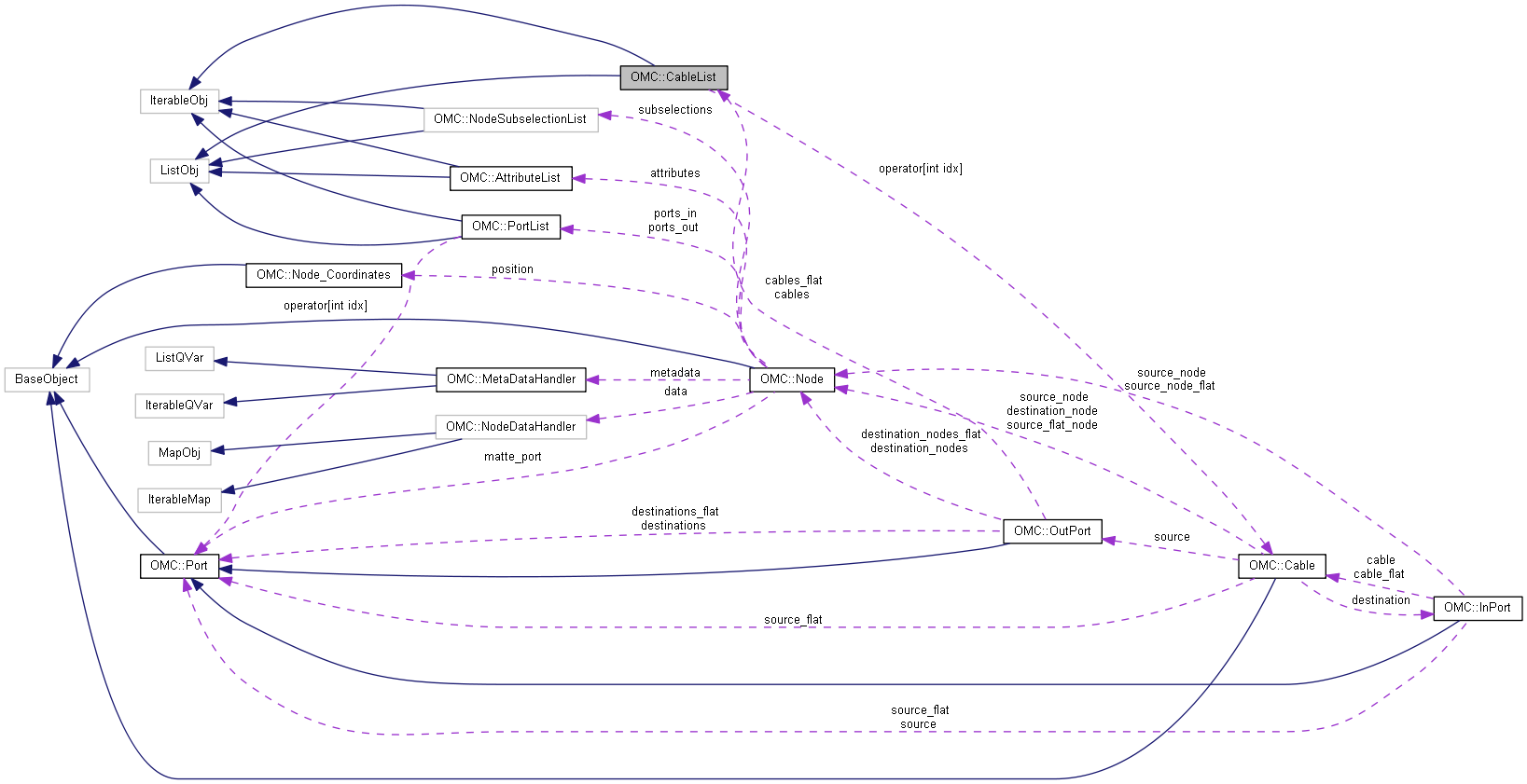

Collaboration diagram for OMC::CableList:
