OMC::InPort Class Reference

Detailed Description

Represents and provides the methods for a node's in port.

The InPort is a port at the top of a node that accepts incoming connections from another node's OutPort. These are used in order to define a node-graph path between nodes and is the basis of rigging within the application.

Identify all In Ports on a Node

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.

peg = scene.nodes["Top/Peg"]                                 #Find the peg node.

#Identify all In-Ports on a Peg
ports_in = peg.ports_in                                      #The in-port list for the node.

for idx,port in enumerate(ports_in):
  connection = "NONE"
  if port.source_node:                                       #Check if this port is connected to anything.
    connection = port.source_node.path

  print( "Port %s : %s"%(idx, connection) )

Connect Some Nodes

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.

top = scene.top                                              #The top group.

proj.history.begin( "Test Node Connection" )

peg  = top.nodes.create( "PEG", "PEG001" )
read = top.nodes.create( "READ", "DRAWING001" )

#Connect the ports!
read.ports_in[0].source = peg.ports_out[0]                   #Connecting the in port of the read to the outport of the peg.

proj.history.end()

Public Member Functions
virtual OMC::Cable *	link (const OMC::OutPort *outPort)
	Connects this in port, to the outport of another node. More...
virtual void	unlink ()
	Disconnects this port from another other port. More...

Public Attributes
bool	linked
	True if the port is a dynamic port.
bool	matte_port
	Identifies if the port is a matte port.
OMC::Cable *	cable
	Provide the cable connected to a port.
OMC::Cable *	cable_flat
	Provide the flattened, read-only cable connected to a port. Ignoring all mutli-port modules and groups.
OMC::Port *	source
	Get and set the source port that is connected to this port.
OMC::Node *	source_node
	Get and set the source node that is connected to this port.
OMC::Port *	source_flat
	Get the flat source port that is connected to this port.
OMC::Node *	source_node_flat
	Get the flat source node that is connected to this port.
uint	id
	The internal ID of the port.
QString	type
	The type of the port.
uint	index
	The index of the port on the node.
OMC::Obj	node
	The node that owns this port.
OMC::Obj	node_related
	The node that this port leads to for multiport nodes and groups - the owner node for most node-types, but the the multi-port node for a group, or vice versa.
bool	inport
	Whether the port is an inport.
bool	outport
	Whether the port is an outport.
OMC::Obj	port_related
	The port that this port relates to – itself for most node-types, but the corresponding port on the multi-port node for groups, or vice versa.

Member Function Documentation

link()

virtual OMC::Cable* OMC::InPort::link ( const OMC::OutPort *  outPort )

virtual

Connects this in port, to the outport of another node.

Returns

The cable that connects the nodes, if successful.

unlink()

virtual void OMC::InPort::unlink ( )

virtual

Disconnects this port from another other port.

Inheritance diagram for OMC::InPort:

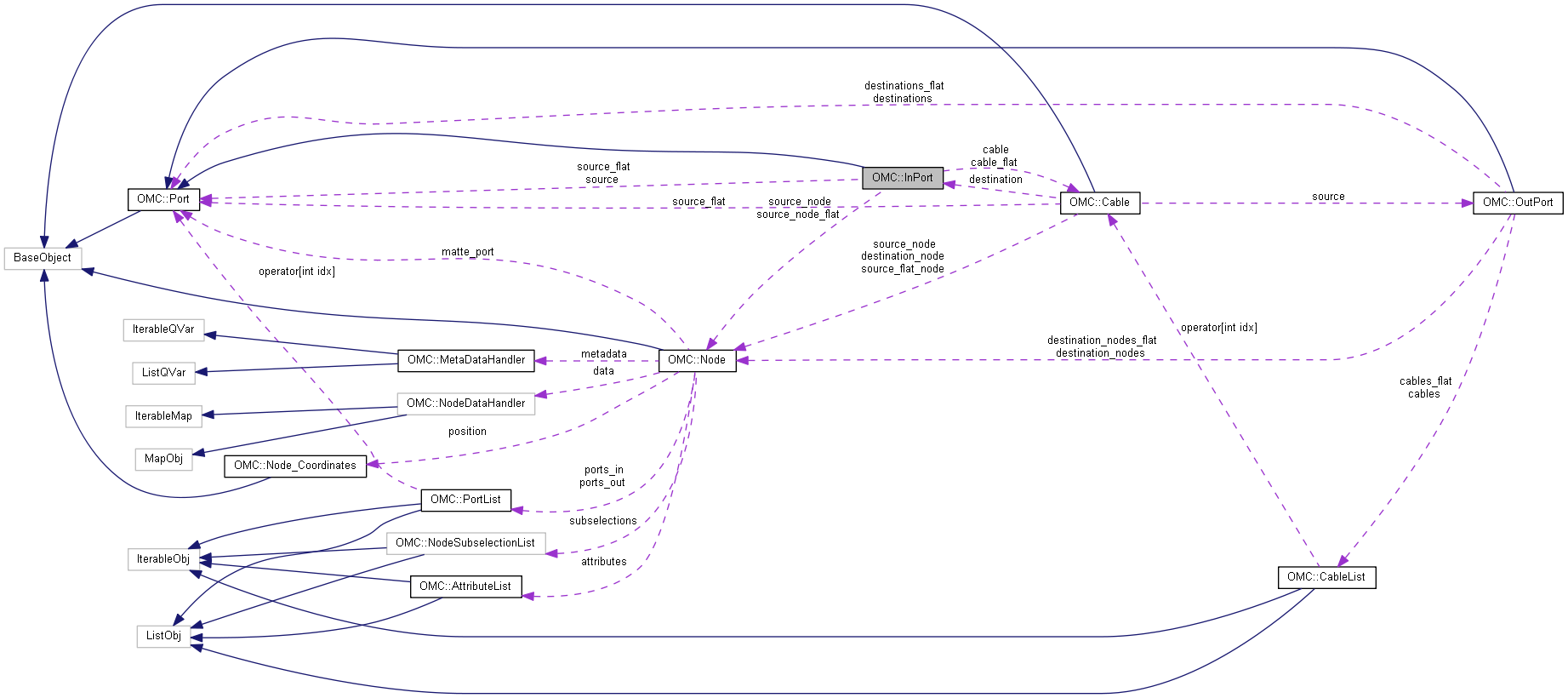

Collaboration diagram for OMC::InPort:
