OMC::Cable Class Reference

Detailed Description

Represents and provides the methods for a cable connecting nodes in the node view.

The cable is the representation of a connection between Ports on a Node, and is useful for tracing the connection between nodes.

Follow a Cable

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.

peg = scene.nodes["Top/Peg"]                                 #Find the peg node.

#We'll simply follow this peg's connection downwards via the first available connection to the 0th port.

#Using a method so that it can be called for each node that is followed.
def recursive_cable_follower( node ):
  print( "Following : %s "%(node.path) )
  try:
    port = node.ports_out[0]
    cable = port.cables[0]                                   #Use the first attached cable to this port.
    next_node = cable.destination_node                       #Where does this cable connect to next?

    recursive_cable_follower( next_node )                    #Follow the next node. . .

  except:
    print( "Failed to continue -- is there any valid connection?" )

recursive_cable_follower( peg )

Public Member Functions
OMC::Cable *	insert (const OMC::Node *node, const OMC::inPort *inPort, const OMC::outPort *outPort)
	Insert a node in between the currently connected nodes by this cable.
void	unlink ()
	Disconnect the cable.

Public Attributes
OutPort *	source
	Get and set the source port from which this cable is connected.
Node *	source_node
	Get and set the source node from which this cable is connected.
InPort *	destination
	Get and set the destination port to which this cable is connected.
Node *	destination_node
	Get the destination node to which this cable is connected.
Node *	source_flat_node
	Get the node from which this cable is connected, ignoring all waypoints, groups and multiports.
OMC::Port *	source_flat
	Get the node from which this cable is connected, ignoring all waypoints, groups and multiports.

Inheritance diagram for OMC::Cable:

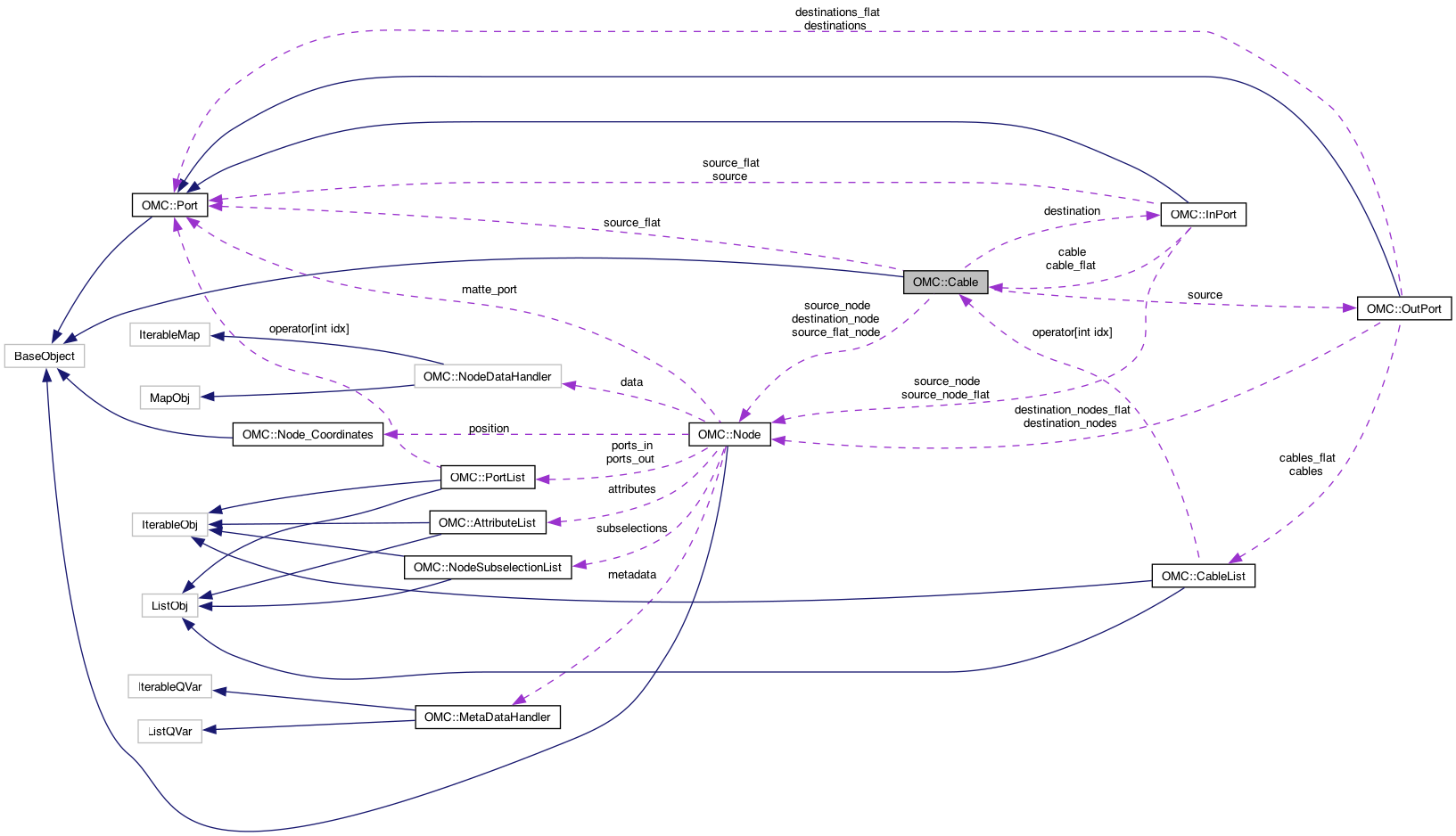

Collaboration diagram for OMC::Cable:
