Detailed Description

Provides the default image import options.

Note: If the insertion frame is inferior to 1 (default being 0), the imported image will have the exposure of the full scene length.

Public Member Functions
	ImportRasterSettings (int insertion_frame=0, QString vectorization_type="KEEP_ORIGINAL", QString colour_space="sRGB", QString alignment_type="CENTER_FIT", QString transparency_type="PREMULTIPLY_STRAIGHT", QString vectorization_options="Grey")
	The default constructor. More...

Public Attributes
QString	vectorization_type
	The conversion method to import the image into an element drawing. "KEEP_ORIGINAL" by default. More...

QString	vectorization_options
	The vectorization preset method, with all its default or user defined vectorization specifications. "Grey" by default. More...

QString	colour_space
	The final colour space of the imported frames. "sRGB" by default. More...

QString	alignment_type
	The alignment on the canvas of the imported frames. "CENTER_FIT" by default. More...

QString	transparency_type
	The value to multiply the canvas in case the imported drawing has alpha values. The default value is "PREMULTIPLY_STRAIGHT". More...

int	insertion_frame
	The frame number on which to insert the import. More...

Constructor & Destructor Documentation

◆ ImportRasterSettings()

OMH::ImportRasterSettings::ImportRasterSettings	(	int	insertion_frame = `0`,
		QString	vectorization_type = `"KEEP_ORIGINAL"`,
		QString	colour_space = `"sRGB"`,
		QString	alignment_type = `"CENTER_FIT"`,
		QString	transparency_type = `"PREMULTIPLY_STRAIGHT"`,
		QString	vectorization_options = `"Grey"`
	)

The default constructor.

Member Data Documentation

◆ alignment_type

QString OMH::ImportRasterSettings::alignment_type

The alignment on the canvas of the imported frames. "CENTER_FIT" by default.

Alignment	Value
Left	LEFT
Right	RIGHT
Top	TOP
Bottom	BOTTOM
Center fit	CENTER_FIT
Center fill	CENTER_FILL
Center LR	CENTER_LR
Center TB	CENTER_TB
Stretch	STRETCH
ASIS	ASIS
Center first page	CENTER_FIRST_PAGE

◆ colour_space

QString OMH::ImportRasterSettings::colour_space

The final colour space of the imported frames. "sRGB" by default.

Avaialble colour spaces:

"Linear",
"Display P3",
"Display P3 Linear",
"Rec.709",
"Rec.709 2.4",
"Rec.2020",
"Rec.2020 2.4",
"Rec.2020 Linear",
"sRGB".

◆ insertion_frame

int OMH::ImportSettingsBase::insertion_frame

inherited

The frame number on which to insert the import.

The default value is the first frame.

◆ transparency_type

QString OMH::ImportRasterSettings::transparency_type

The value to multiply the canvas in case the imported drawing has alpha values. The default value is "PREMULTIPLY_STRAIGHT".

Pre-multiplication method	Value	Description
Pre-multiply with black	PREMULTIPLY_WITH_BLACK	Premultiplied with Black
Pre-multiply straight	PREMULTIPLY_STRAIGHT	Straight
Pre-multiply with white	PREMULTIPLY_WITH_WHITE	Premultiplied with White
Pre-multiply minimum	PREMULTIPLY_MIN	min (alpha,color) - not available with vectorized frames.

◆ vectorization_options

QString OMH::ImportRasterSettings::vectorization_options

The vectorization preset method, with all its default or user defined vectorization specifications. "Grey" by default.

◆ vectorization_type

QString OMH::ImportRasterSettings::vectorization_type

The conversion method to import the image into an element drawing. "KEEP_ORIGINAL" by default.

Conversion Type	Value
Keep as original Bitmap	KEEP_ORIGINAL
Import as toonboom Bitmap drawing	TOON_BOOM_BITMAP
Convert to toonboom vector drawing	VECTORIZE

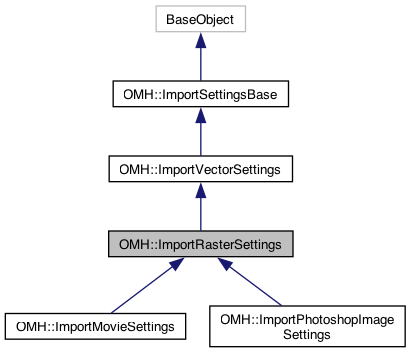

Inheritance diagram for OMH::ImportRasterSettings:

[legend]

Collaboration diagram for OMH::ImportRasterSettings:
