OMH::ImportMovieSettings Class Reference

Detailed Description

Provides the default movie import options.

Note: If the insertion frame is inferior to 1 it will be set to 1.

Public Member Functions
	ImportMovieSettings (int insertion_frame=1, bool sound=True, QString vectorization_type="KEEP_ORIGINAL", QString colourSpace="sRGB", QString alignment_type="CENTER_FIT", QString transparency_type="PREMULTIPLY_STRAIGHT", QString vectorization_options="Grey")
	The default constructor. More...

Public Attributes
bool	sound
	Import the sound of the movie. True by default. More...
QString	vectorization_type
	The conversion method to import the image into an element drawing. "KEEP_ORIGINAL" by default. More...
QString	vectorization_options
	The vectorization preset method, with all its default or user defined vectorization specifications. "Grey" by default. More...
QString	colour_space
	The final colour space of the imported frames. "sRGB" by default. More...
QString	alignment_type
	The alignment on the canvas of the imported frames. "CENTER_FIT" by default. More...
QString	transparency_type
	The value to multiply the canvas in case the imported drawing has alpha values. The default value is "PREMULTIPLY_STRAIGHT". More...
int	insertion_frame
	The frame number on which to insert the import. More...

Constructor & Destructor Documentation

ImportMovieSettings()

OMH::ImportMovieSettings::ImportMovieSettings	(	int	insertion_frame = 1,
		bool	sound = True,
		QString	vectorization_type = "KEEP_ORIGINAL",
		QString	colourSpace = "sRGB",
		QString	alignment_type = "CENTER_FIT",
		QString	transparency_type = "PREMULTIPLY_STRAIGHT",
		QString	vectorization_options = "Grey"
	)

The default constructor.

Member Data Documentation

alignment_type

QString OMH::ImportRasterSettings::alignment_type

inherited

The alignment on the canvas of the imported frames. "CENTER_FIT" by default.

Alignment	Value
Left	LEFT
Right	RIGHT
Top	TOP
Bottom	BOTTOM
Center fit	CENTER_FIT
Center fill	CENTER_FILL
Center LR	CENTER_LR
Center TB	CENTER_TB
Stretch	STRETCH
ASIS	ASIS
Center first page	CENTER_FIRST_PAGE

colour_space

QString OMH::ImportRasterSettings::colour_space

inherited

The final colour space of the imported frames. "sRGB" by default.

Avaialble colour spaces:

• "Linear",
• "Display P3",
• "Display P3 Linear",
• "Rec.709",
• "Rec.709 2.4",
• "Rec.2020",
• "Rec.2020 2.4",
• "Rec.2020 Linear",
• "sRGB".

insertion_frame

int OMH::ImportSettingsBase::insertion_frame

inherited

The frame number on which to insert the import.

The default value is the first frame.

sound

bool OMH::ImportMovieSettings::sound

Import the sound of the movie. True by default.

transparency_type

QString OMH::ImportRasterSettings::transparency_type

inherited

The value to multiply the canvas in case the imported drawing has alpha values. The default value is "PREMULTIPLY_STRAIGHT".

Pre-multiplication method	Value	Description
Pre-multiply with black	PREMULTIPLY_WITH_BLACK	Premultiplied with Black
Pre-multiply straight	PREMULTIPLY_STRAIGHT	Straight
Pre-multiply with white	PREMULTIPLY_WITH_WHITE	Premultiplied with White
Pre-multiply minimum	PREMULTIPLY_MIN	min (alpha,color) - not available with vectorized frames.

vectorization_options

QString OMH::ImportRasterSettings::vectorization_options

inherited

The vectorization preset method, with all its default or user defined vectorization specifications. "Grey" by default.

vectorization_type

QString OMH::ImportRasterSettings::vectorization_type

inherited

The conversion method to import the image into an element drawing. "KEEP_ORIGINAL" by default.

Conversion Type	Value
Keep as original Bitmap	KEEP_ORIGINAL
Import as toonboom Bitmap drawing	TOON_BOOM_BITMAP
Convert to toonboom vector drawing	VECTORIZE

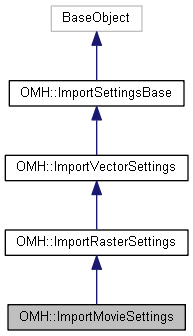

Inheritance diagram for OMH::ImportMovieSettings:

Collaboration diagram for OMH::ImportMovieSettings:
