OMC::EaseColumnValue Class Reference

Detailed Description

The value provided by a EaseColumn when accessed as a list, or iterated.

This object provides the value of a Ease Column when accessed as a list. Print Column Values

from ToonBoom import harmony                                 #Import the Harmony Module
sess = harmony.session()                                     #Get access to the Harmony session, this class.
proj = sess.project                                          #Get the active session's currently loaded project.
scene = proj.scene                                           #Get the top scene in the project.

columns = scene.columns                                      #The overall node list of the scene.
ease_col = columns["EASE_COLUMN_NAME"]

at_frame = 1
col_frame_val = ease_col[at_frame]                           #Accessing as a list using 'at_frame'
print( "Value at frame %s : %s"%(col_frame_val.frame, col_frame_val.value) )

Public Attributes
double	frame
	The frame at which this object provides information.
double	value
	The value at the given frame.
bool	key
	True if the given frame is a keyframe.
bool	const_segment
QString	continuity
double	ease_in
double	ease_in_angle
	The angle of the ease-in handle.
double	ease_out
	The number of frames in the ease-out.
double	ease_out_angle
	The angle of the ease-out handle.
EaseColumnValue *	keyframe_previous
EaseColumnValue *	keyframe_next

Member Data Documentation

const_segment

bool OMC::EaseColumnValue::const_segment

readwrite

Returns true to indicate that the point is on a constant segment, or false to indicate that the point is not on a constant segment.

continuity

QString OMC::EaseColumnValue::continuity

readwrite

Returns the continuity of the curve that follows the point. One of the following values will be returned, in upper-case: SMOOTH, CORNER or STRAIGHT.

ease_in

double OMC::EaseColumnValue::ease_in

readwrite

Returns the number of frames in the ease-in.

keyframe_next

OMC::EaseColumnValue::keyframe_next

The next frame at which there is a keyframe present. If none are present, returns none.

keyframe_previous

OMC::EaseColumnValue::keyframe_previous

The previous frame at which there is a keyframe present, this frame value object if its currently a keyframe.

Inheritance diagram for OMC::EaseColumnValue:

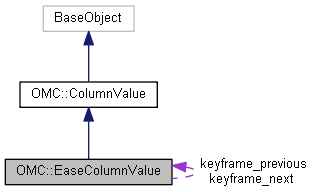

Collaboration diagram for OMC::EaseColumnValue:
