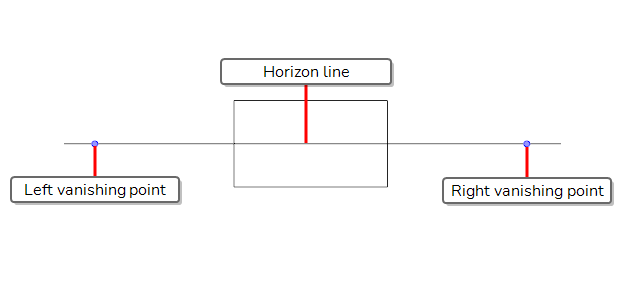

The 2-Points Perspective guide can help you draw backgrounds and objects seen from the ground, but at an angle. It provides a horizon line and two vanishing points, which are located outside of the camera field by default. The height and angle of the horizon line as well as the position of both vanishing points can be adjusted as needed.
- In the Tools toolbar, select either the
Brush, Pencil or Line tool.
- In the Guides view, make sure that the Enable Guides option button is toggled on.
In the guides list, select the
2-Points Perspectiveguide that you wish to make adjustments to.
The selected guide appears in the
Stage or Cameraview.NOTE The vanishing points for this guide are far outside of the camera field by default.You may need to zoom out in order to be able to see them.
- Do one of the following:
- To move the horizon line along with the two vanishing points that are on it, click and drag on the horizon line.
To rotate the horizon line, click and drag on one of the two vanishing points and move it up or down. This will rotate the horizon line around the opposite vanishing point.TIPS
- You can press and hold the Shift key to make the angle of the horizon line snap to the nearest multiple of 15°.
- You can press and hold the Alt key to make the guide rotate around the centre of its horizon line.
- When rotating a guide, its angle displays in the top-left corner of the
Stage or Cameraview.
To reposition one of the vanishing points on the horizon line, click and drag on that vanishing point and move it left or right.TIP You can press and hold the Alt key to make both points move simultaneously, so that they are both at the same distance from the centre of the horizon line.
