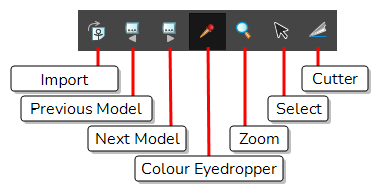

Reference View Toolbar

The Reference View toolbar appears in the Reference view. Use the commands and tools from this toolbar to view and sample from models (reference drawings) that you have imported into the Reference view.

Icon	Tool/Command	Description
	Import References	Opens a browser window to locate and select *.tvg drawing files from outside the project. Once selected, these drawing files are imported into the Reference view as models.
	Previous	Allows you to navigate backwards from the currently displayed model, to view other models previously loaded into the Reference view.
	Next	Allows you to navigate forwards from the currently displayed model, to view other models loaded afterwards into the Reference view.
	Colour Eyedropper	Allows you to select a colour by clicking on a colour in your artwork.
	Zoom	Allows you zoom in and out of the Reference view.
	Select	Allows you to select and reposition, scale, rotate and skew brush strokes, pencil lines, shapes and other parts of your artwork.
	Cutter	Allows you to cut a part of your artwork, then reposition, scale, rotate and skew it.
