Export Layout Dialog Box

The Export Layout window lets you export some or all the scenes of your project into layout images, which can be used to properly position scene elements when working on different aspects of the scene throughout the production. For example, a layout can be be imported in Harmony to accelerate its set up and properly position the elements and camera keyframes of the scene. Also, a layout exported into .psd format can serve as the base to create the background art for the scene so that it’s properly adapted to the scene’s layout, action and camera movements.

Layout images can be rendered with all layers combined or with one image per layer, and can optionally include camera keyframes and movements. Layouts can be exported in .psd (with separate layers), .tga, .jpg or .png format.

Parameter	Description
Destination Path
Path	Allows you to specify the directory in which to save the exported files. You can click on the Browse button right of the field to browse your file system and select the destination folder.
File Pattern	Allows you to enter the prefix or the pattern for the names of the exported files. You can leave this field blank to use the default file naming pattern, type in a file name to use it as a prefix, or type a full pattern using the following variables: %t - Project title %a - Act number %q - Sequence number %s - Scene number TIP Numbers used in file naming patterns are automatically padded by zeros as needed. You can type a number between the % sign and the variable letter to determine the amount of characters you want the variable to use. For example, with the variable %4s, scene 1 would appear as scene 0001.
Options
File Format	Allows you to select an image format in which to save the layout images: *Jpeg (.jpg): An image format with lossy compression optimized for the Web. Only use this format if export speed is more important than quality. Targa (.tga):* An image format with basic lossless compression. *Photoshop (.psd): The format used for Adobe Photoshop projects. It is uncompressed. NOTE When you export layouts in this format, each layer in the first panel of the scene is exported as a separate layer in the PDF file. If you choose to export camera frames, they will also be on a separate layer over other layers. Portable Network Graphics (.png):* An image format with a more effective lossless compression than Targa (.tga). Exporting in this format is slower, but saves a lot of disk space. PNG files are supported by web browsers, most operating systems and image editing software.
Transparent Background	This option only appears if the file format selected is Photoshop (.psd). When exporting in Photoshop (.psd) format, by default, a white background layer is added behind every other layer. Enable this option to have no background layer.
Base Image Size	Allows you to select whether you export at the same size as your project's resolution, at half its dimensions or at a quarter of its dimensions.
Colour Space	Sets the colour space for the export. If you plan to create an export for use in a different software, you may want to match colour spaces to keep all your colours consistent. The default setting is the current Storyboard Pro project colour space, which was selected on creation of the project.

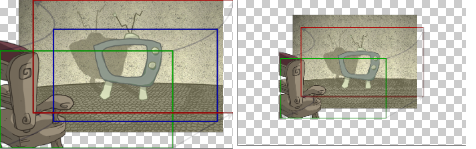

Expand Render Area	Expands the area to render into the layouts. By default, only the area of the scene that is covered by the camera is rendered, and exported layout images are cropped at the edges of the camera frames. If enabled, this option adds space around the render area and captures extra details outside the camera frames. By default, the render area is expanded by 10%. You can use the input field to the right of the option to change this ratio.
Scale Image Up to Smallest Camera Frame	Ensures that when a camera close-up is included in a scene, the exported image is larger so that the closest camera frame is at least the size of the chosen image size. This way, the layout does not appear pixelated when zooming in on the closest camera frame. If disabled, the size of the exported images will be based off the chosen Base Image Size and Expand Render Area options.
Limit Image Size	If the Scale Image Up to Smallest Camera Frame option is enabled, this ensures images do not get scaled up too much. If enabled, images will be limited to 4096 pixels in width and height by default.
Export One Image Per Layer	Exports each layer as a separate image file. If Print Camera Frames option is enabled, the camera frames and camera movements will be printed on each layer. Any child layers of 3D Layers or groups will export merged with the parent image in the final render.
Apply Layer Motion to Camera	When exporting one image per layer and with camera frames, if your layers are animated, this option allows you to combine the layer's animation with the camera movement that is printed on it. By following the resulting camera movement, the layer will appear to be animated just like it is in your animatic. For example, in a scene where a drawing layer moves towards the right, and the camera moves up, the camera movement that will be printed on the layer's layout image will be combined with that layer's animation, and the resulting camera movement will go up and towards the left, so that the layer itself appears to move towards the right.
Print Camera Frames	Prints the first and last camera frame of each scene into the exported layout images. If exporting in .psd format, the camera frames will be printed on a separate layer.

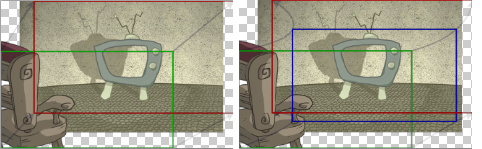

Print a Frame for Each Camera Keyframe	If a scene contains a camera movement with more than two keyframes, this prints each camera keyframe into the layout.
Print Camera Labels	Adds the camera position label in the top-left corner of each camera frame. Camera frames are labeled with a letter of the alphabet indicating their respective order.
Export Range
All	Exports the entire storyboard.
Selected Scenes	Select this option to export a specific selection of scenes. Then, click on the Select button to open the Scenes Picker dialog box, in which you can: Type the number of a sequence or of a scene in the Sequence or Scene fields in the Filter section, to only show matching sequences or matching scenes in the list. Click and drag to select a range of scenes. Hold the Ctrl key and click on each scene you want to add to your selection. Hold the Shift key, then click on the first scene and the last scene you want to add to your selection, to select every scene between those two scenes inclusively. If your project has sequences, click on a sequence to select every scene in that sequence.
Current Scene	Exports only the currently selected scene.
Open folder after export	Opens the folder in which files were exported in a file browser once the export is done.
