The Pencil tool allows you to draw simple contour lines that are defined by their centerline and their thickness.

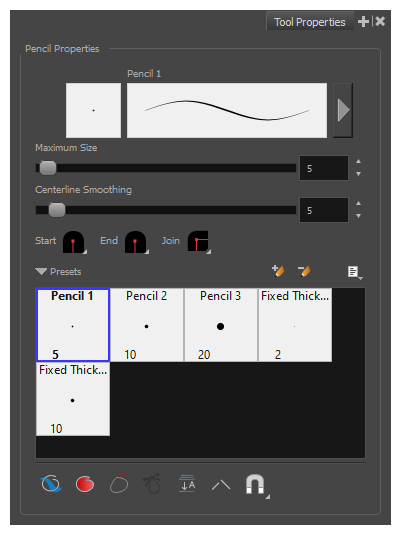

When you select the Pencil tool, the Tool Properties view displays the different Pencil modes that control how the pencil line is drawn.
- In the Tools toolbar, select the Pencil tool.
The tool's properties are displayed in the Tool Properties view.
The following properties affect the pencil's
The Preview area lets you see a preview of the stroke your drawing tool will make.
|Pencil Properties Dialog||
The arrow button right of the preview area opens the Pencil Properties dialog.
While the Tool Properties view only gives you access to a few of the pencil properties, a list of pencil presets and other drawing options, the Pencil Properties dialog gives you access to all the available options for your pencil's shape and texture. For more information on the Pencil Properties dialog, see the Pencil Properties Dialog section below.
Defines the maximum width of the pencil line.
If the tool is used with a pressure sensitive pen tablet, the width of the stroke will vary between its maximum size and minimum size depending on the amount of pressure used. If used with a mouse, the width of the stroke will always be its maximum size.
Defines the number of control points added to the centre line. The fewer the control points the smoother (but less faithful) the line.
You can adjust the start, end, and join style of a pencil line.
These options allow you to select, create and manage pencil presets.
Storyboard Pro provides a
You can export the pencil presets that you have created and import those that others have created. This is a good way for you and project collaborators to keep a consistent look for the project.
|New Brush Preset||
Creates a new preset based on the current tool properties.
|Delete Brush Preset||
Deletes the currently selected preset.
|Brush Presets Menu||
Open a menu that contains the following options:
These options affect the way your drawing strokes are added to your artwork.
When enabled, your brush strokes will appear behind the existing artwork.
NOTE Your brush stroke will temporarily appear over your artwork as you draw it, until you release the mouse cursor or tablet pen.

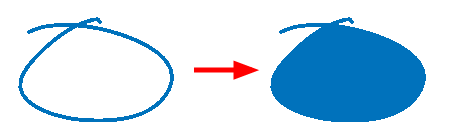

When enabled, drawing a closed shape will automatically fill it with the currently selected
|Trim Extra Lines||
When enabled, drawing a closed shape will automatically remove the outstanding lines.
|Align Handles After Trim||
When the Trim Extra Lines option is enabled, enable this option to make the point where the beginning and end of the stroke meet into a smooth curve rather than a hard corner.
By default, when drawing
NOTE Using the Select tool, you can select and remove a segment of flattened pencil lines. Overlapping pencil lines drawn with the Auto-Flatten mode are essentially cut into segments by the overlap and can be treated as individual lines.
When enabled, small gaps between the pencil lines you draw will be closed by an invisible stroke to make sure your shapes are closed and that they can be filled with the Paint tool.
When drawing contours with pencil lines, the centreline is used to determine whether or not the contour is closed, but the visible tips of the pencil line will extend a bit beyond the tips of its centreline, making it possible to have shapes that appear closed, but are not really. This can prevent the shape from being filled with the Paint tool. Enabling this option when drawing with the Pencil or Line tool will prevent you from leaving invisible gaps in your contours.
Allows you to enable or disable snapping for this tool and all other animation and drawing tools that support snapping, as well as to select which types of snapping are enabled.
If you double-click or long-click on this button, it will open a pop-up menu in which you can toggle different snapping modes. You can also click on this button to toggle it off, which will disable all snapping modes, and click on it again and toggle it on to re-enable the snapping modes which were previously enabled.
This tool supports the following snapping mode:
Pencils have extra parameters which are not accessible from the Tool Properties view. To open the Pencil Properties dialog, click on the arrow button right of the stroke display area.
The Size and Smoothness tab allows you to select your pencil's size, its smoothing parameters as well as the shape of its tips and corners.
|Maximum Size||Defines the maximum size of the pencil line. If the tool is used with a pressure sensitive pen tablet, the width of the stroke will vary between its maximum size and minimum size depending on the amount of pressure used. If used with a mouse, the width of the stroke will always be its maximum size.|
Defines the minimum size of your stroke as a percentage of the maximum size. If you do not have pressure sensitivity from a pen table, the minimum size value will be ignored.
|Centerline Smoothing||Defines the amount of smoothing Storyboard Pro should perform on the central line of the pencil stroke. A higher setting will prevent your line from being shaky and will reduce the amount of control points it has, making it easier to tweak, but is liable to reduce drawing precision and turn sharp angles into curves.|
Defines the amount of smoothing Storyboard Pro should perform on the outer contour of the pencil stroke.
A pencil line is defined by its centreline and its variations in thickness, rather than its apparent shape. When drawing a pencil line with a mouse, its thickness is uniform. Therefore, its outer contour does not have any control point, except at its extremities, and no smoothing is required for its contour.
However, when drawing a pencil line with a pressure sensitive tablet, its contour will have control points and Bezier curves to define the line's variations in thickness, and thus smoothing must be performed on its contour. An increased contour smoothing will reduce the amount of control points on the line's thickness and smoothen its curves, but may affect the precision of the variations in line thickness.
You can adjust the start, end, and join style of a pencil line.
In the Pencil Properties view, the Texture Tab allows you to select a texture to apply to your pencil lines. You can also add, remove or rename textures, save the current pencil texture palette as the default one, or import the pencil texture palette into your scene.
Allows you to import an image file into a new pencil texture swatch in the current pencil texture palette. The pencil texture's effect on your pencil line will be based on the image's transparency channel, and will follow your pencil lines on its horizontal axis. This option is also available from the menu button.
Deletes a pencil texture swatch from the current pencil texture palette. This option is also available from the menu button.
Renames the selected pencil texture swatch in the current pencil texture palette. This option is also available from the menu button.
|Use as Default Pencil Texture Palette||
This option is available from the menu button. Sets the currently selected pencil texture palette as the default pencil texture palette in your user preferences. The default pencil texture palette is added to every scene you create in Storyboard Pro. The palette is copied in your preferences, so it will be added to your new scenes in the exact state it is when you make it the default pencil texture palette.
|Pencil Texture Display||
Displays the pencil textures in the current pencil texture palette and allows you to select one to use with the Pencil tool.
