Library View

The Library view is used to store elements such as animation, drawings, backgrounds and character models so as to reuse in different scenes and projects. You can also use the Library view to create and store symbols, as well as to store and import images and sound files.

To reuse elements from a scene in other scenes, you must create a template so that you can import it into different scenes. Templates can contain anything from a single drawing to a whole scene structure. You can create a template by creating it in a scene, then copying the elements you want in your template into a library. The resulting template is structured like a mini-scene that contains only the elements you copied into it. A template does not have any dependencies on the scene it was originally created in. Hence, it can safely be imported in any other scene.

Additionally, the Library view's Drawing Substitutions panel allows you to quickly change the current frame's exposure to one of the existing drawings in a layer. You also have the option to enable the Layer Selection mode where you can select from different layers contained in your element. You can change the drawing of your element by selecting it from the dropdown menu in the Layer Selection mode. This is especially useful for animating a cut-out character's mouths, hands, eyelids and other such body parts which typically contain several drawings to choose from. Scrubbing through the element’s layers is particularly useful for 2D image files that are separated into different drawing layers.

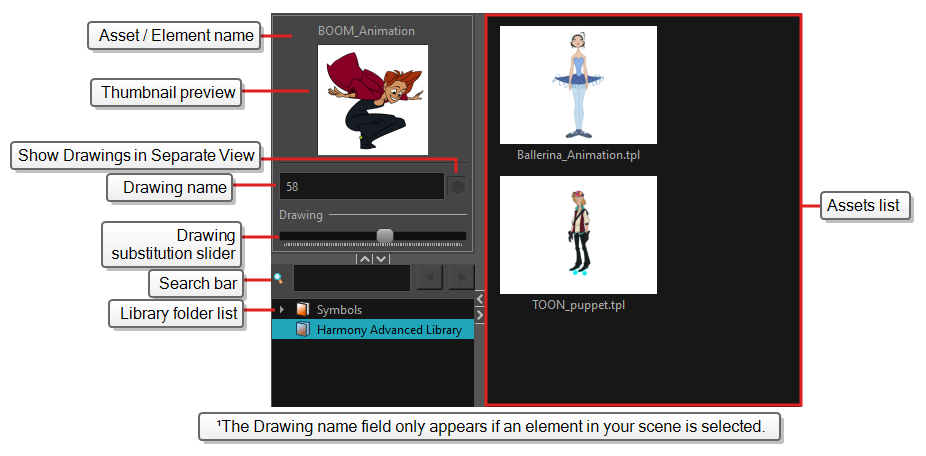

Icon	Section	Description
	View Menu	The Library menu lets you access commands related to the Library view, importing .swf movies and Illustrator files, add a new folder, and refresh the library’s content.

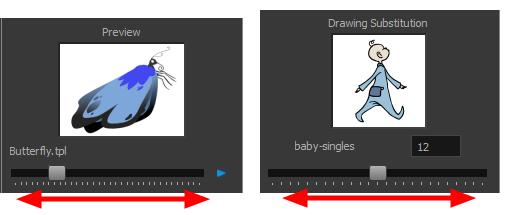

	Preview Window	The Preview window lets you see the content of the currently selected template or symbol in the Template/Symbol list.
	Show drawing layers in separate view	Enables the Layer Selection mode offering the ability to select an element’s layer from a dropdown menu. You can swap the frames of any drawings or animations contained in the layer in order to change the drawing in the timeline or Xsheet. NOTE By default, the Layer Selection mode is disabled. To enable the panel, you will need to click the Use separate selection for drawing layers.
	Preview Playback	The Preview Playback button lets you play back the content of the selected template or symbol if it contains more than one frame. Press the Play button to play back the preview.
	Library Folder List	The Library Folder List displays all the folders linked to the Library view. There are two default folders: Symbols: This folder is the only folder containing symbols. You can organize it by adding subfolders inside. Harmony Advanced Library: This is a default folder found on the hard drive in your user documents. This folder can contain templates, but no symbols. You can link new library folders to the Library view and organize them with subfolders.
	Library Search tool	When working on a movie or series, you will probably end up with many templates and symbols in your library. Using the Search tool, you can quickly find the templates and symbols in your folders.
	Template/Symbol List	The Template/Symbol list displays the templates or symbols contained in the selected library folder. You can display the templates by right-clicking the symbols’ thumbnails and selecting View > Thumbnails.

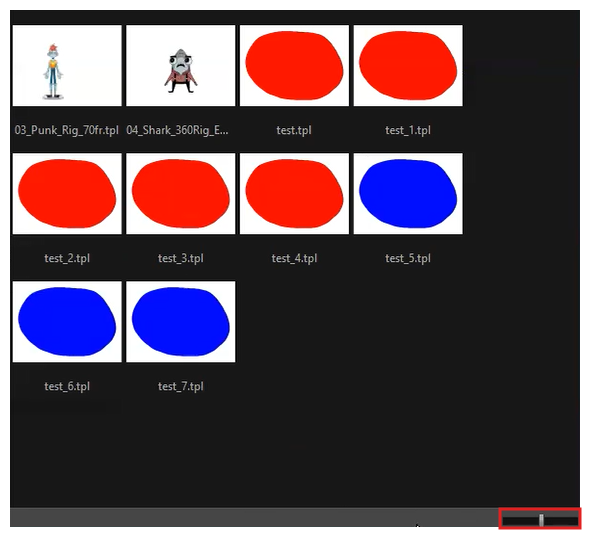

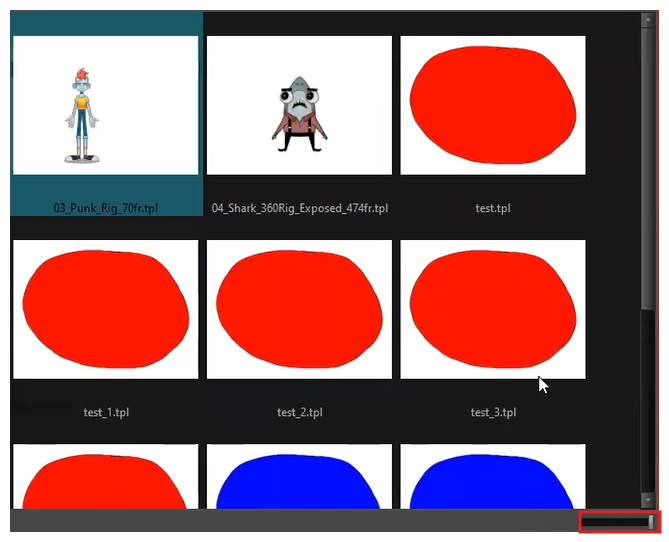

	Slider	A slider could be used to adjust the display size of thumbnails in the Library view.
