CryptoMatte Node
The CryptoMatte Node is a node that is used to access a specialized matte from an imported EXR file. This format is often used in a compositing workflow and allows an artist to select targeted mattes from a rendered image.
The CryptoMatte Node reads these custom formatted EXRs' data. It identifies and isolates the available matte layers and renders the mattes needed for the specific compositing operation. This rendered image format can be imported from any digital content creation software. Harmony can read EXRs exported from both 2D and 3D softwares.
Node Structure
See the image below for an example node structure.
Properties

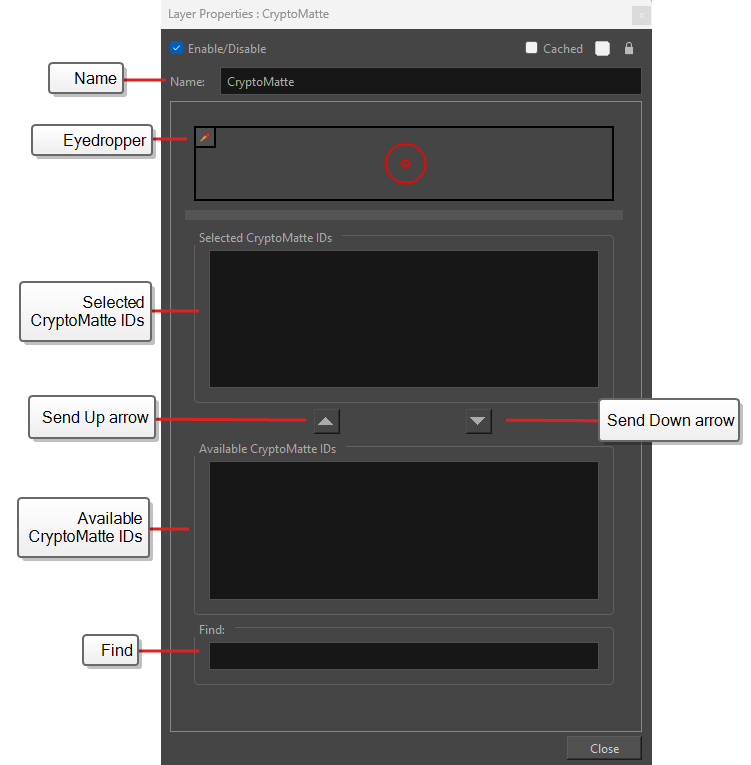

The CryptoMatte Node Layer Properties, is a properties window that allows you to organize, isolate and exclude the various IDs contained in the EXR file.
| Icon | Parameter | Description |
| Name |
Title of the CryptoMatte as it appears in the Node view. To change the name of the CryptoMatte, enter a new name into the Name bar. |
|
|
|
Eyedropper |
Allows you to add ID(s) to the Selected CryptoMatte IDs box by clicking directly on available ID(s) in the Camera View. NOTE
When the Eyedropper is selected, the CryptoMatte will be temporarily disabled, displaying the original EXR render. This allows you to pick a region on the original EXR(s).
|
| Selected CryptoMatte IDs | Lists all the ID(s) in the EXR file that have been selected for isolation. | |
| Available CryptoMatte IDs | List all the ID(s) contained in the EXR file. | |
|
Up arrow | Send Available CryptoMatte IDs to the Selected CryptoMatte IDs. |
|
Down arrow | Send Selected CryptoMatte IDs to the Available CryptMatte IDs. |
| Find |
Search bar that allows you to find Available CryptoMatte IDs based on the ID name. Wildcard symbols help to filter out IDs irrelevant to your search. Wildcard Symbols:
|
