T-ANIMPA-005-006
You can change the pen size and colour when you draw in the annotation column.
How to modify the pen width
- Click the Xsheet menu
or right-click a cell in the Annotation column - Select Annotation > Pen Width, and do one of the following:
- Select a pen width preset.
- Select Change Current to display the Pen Width dialog box. In the Pen Width field, type the number of pixels for the pen size and click OK.
How to modify the pen colour
- Click the Xsheet menu or right-click a cell in the Annotation column
- Select Annotation > Change Pen Colour.

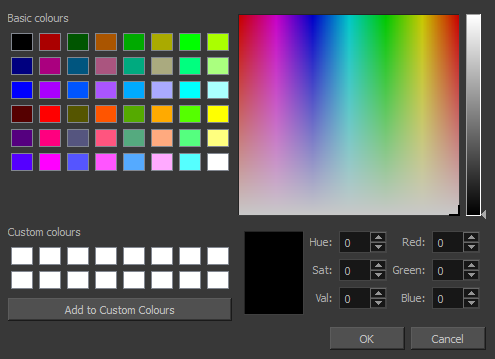

The Select Colour dialog box opens.
- Choose a new colour.
- Click OK.
