About the Rotate View Tool

T-LAY-001-005

The Rotate View tool lets you rotate the Drawing view, the same way as you would do with a real animation disc for increased flexibility. This tool can also be used in the Perspective view.

Rotary Table

The Rotate View tool has no options in the Tool Properties view.

  1. Do one of the following:
  • From the top menu, select Tools > Rotate View.
  • In the Tools toolbar, select the Rotate View tool in the Hand tool menu.
  • In the Drawing view, right-click and select Drawing Tools > Rotate View.
  • Hold down Ctrl + Alt (Windows/Linux) or ⌘ + Alt (macOS).

The rotation disc appears.

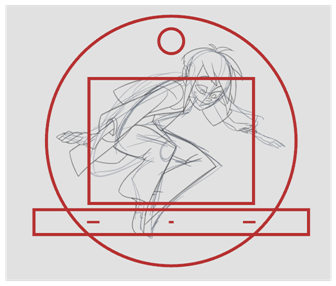

Displaying the rotary table

  1. In the Drawing view, click and drag to rotate the space.

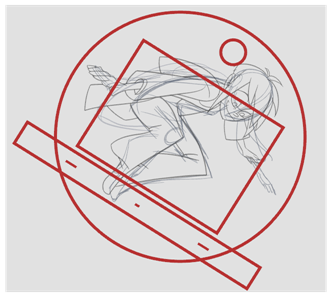

Rotating the view

  1. Release the keyboard shortcut or switch to a new drawing tool.
  1. Reset the view rotation using View > Reset Rotation or press Shift + X to reset the rotation.
