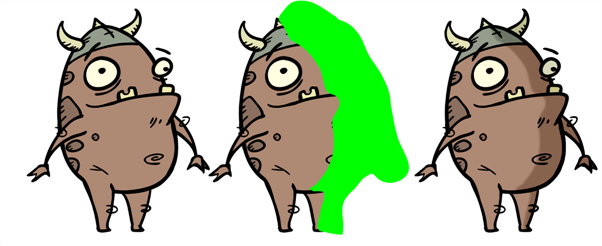

Using the Tone effect, you can apply a shadow to a drawing. Contrary to the Shadow effect, the Tone effect does not convert your drawing into a shadow, it applies the shadow onto your drawing. The resulting render includes both the drawing to its shadow.

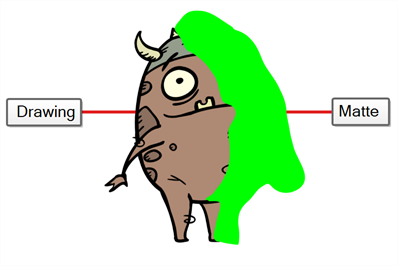

The Shadow effect uses a matte drawing layer to determine which areas of the drawing to apply the shadow to. The shadow will not be applied outside of the drawing or outside of the matte.
How to use the Tone effect
- Select a drawing layer.
-
Click the Add Layers
button and select Effects > Tone.The Tone effect is parented to the selected layer.
- In the toolbar above the layer list in Timeline view, click on
Add Drawing Layer .
-
In the Add Drawing Layer dialog, give your new drawing layer a relevant name for a matte layer, such as "Matte-Drawing", then click on Add and Close.
-
In the new matte drawing layer, draw a matte for your effect. Your matte can be a simple shape, but should be filled with a colour, as only parts of the matte that are opaque will be taken in account.
NOTE Mattes can also have semi-transparent areas. Areas of the drawing that are covered by semi-transparent areas of the matte are partially affected by the effect.
-

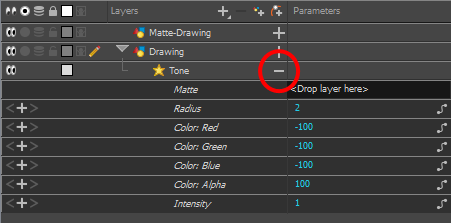

In the Timeline view, click the Collapse/Expand
button at the right the Tone layer.
-

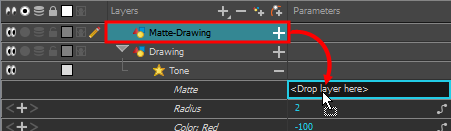

Drag and drop the matte layer right of the Matte field, under the Parameters column.
The value of the Matte parameter will be the name of the matte drawing layer.
- Display the Tone properties and adjust the properties to control the type and amount of blur and the colour of the Tone effect—see Tone Layer.
