You can merge drawings from adjacent layers or columns. The merged drawings will appear in the lower layer or left-most column of the two layers or columns selected.
How to merge selected drawings

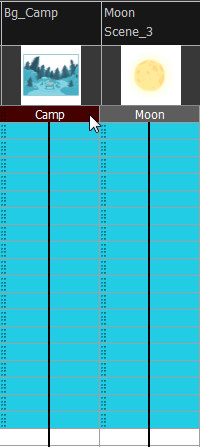

- In the Xsheet view, select the drawings to merge.
- Do one of the following:
| ‣ | In the Xsheet menu, select Columns> Merge Selected Drawings. |
| ‣ | In the Timeline menu, select Layers > Merge Selected Drawings. |
- Do one of the following:
| ‣ | In the Xsheet menu, select Columns > Merge Selected Columns. |
| ‣ | In the Timeline menu, select Layers > Merge Selected Layers. |

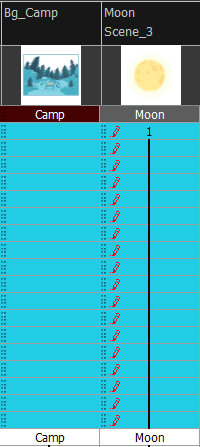

In the Xsheet view, the right-most column will contain the merged drawings and the remaining columns will be left blank at the corresponding frames. In the Timeline view, the bottom timeline layer will contain the merged drawings from all layers and the other layers will be left blank at the corresponding frames. Drawings are not deleted and are still accessible.
