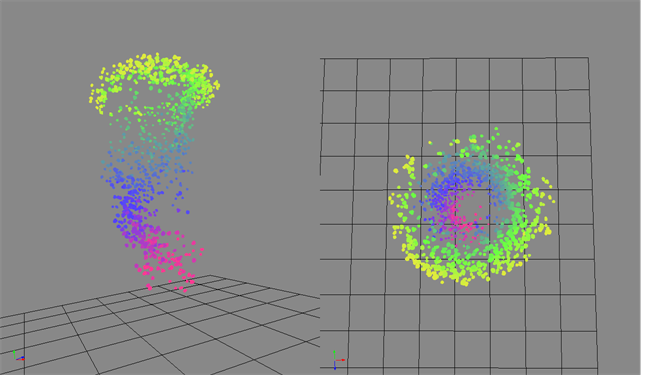

The Vortext effect allows you to define an axis as a vortex, so the particles will spin around this axis.

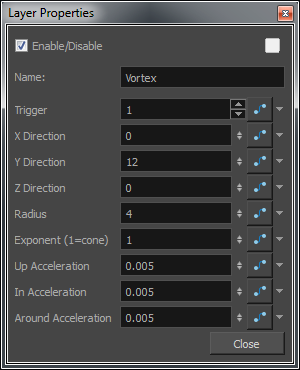

Vortex Properties
| Parameter | Description |
| Trigger |
An on/off switch using binary code, where 1 = on and 0 = off. |
| X Direction | Defines the X portion of the axis of rotation for the Vortex. |
| Y Direction | Defines the Y portion of the axis of rotation for the Vortex. |
| Z Direction | Defines the Z portion of the axis of rotation of the Vortex. |
| Radius | Defines the radius at the top of the vortex. |
| Exponent (1=cone) | Defines a curve that gives the Vortex a certain silhouette. 1 forms a cone, greater than 1 curves inward. |
| Up Acceleration | Defines the vertical acceleration of the particles that are inside the Vortex. |
| In Acceleration | Defines the inward acceleration of particles that are outside the Vortex. |
| Around Acceleration | Defines the acceleration around the vortex of particles that are inside the Vortex. |
