Toon Boom Harmony Premium has some very powerful painting features to add colour to your drawings. Whereas some other software only allow users to work with one colour swatch at a time, painting in Harmony is done by using palettes containing multiple colour swatches that can be saved and reused as needed.

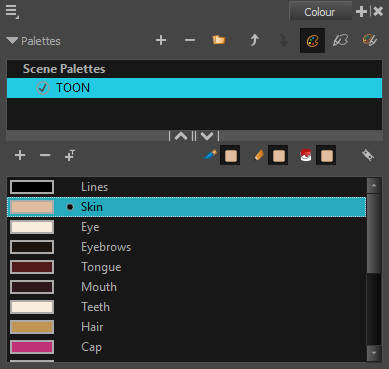

In the Colour view, you choose a different colour swatch for each colour you want to paint in your drawing. You can add as many swatches as you want. You can also rename them and modify existing ones.
When you modify the colour of an existing swatch, it automatically updates all the zones painted with this swatch throughout the entire
Another advantage of this system is that you can create complete palettes for different lighting situations. For instance, in addition to the regular palette for a character, you could have one for that character in the rain using colours that are duller and less vibrant than the dry daytime colours, or yet another for using in a night scene. Using palettes linked to your character in this way allows you to instantly change its colouring to suit the mood and atmosphere of the scene without having to repaint each element.
In animation, specific colours are used to paint each part of each character. In order to maintain absolute consistency, a base colour palette should be created for each character, prop and effect in the production. This is referred to as a master palette.
Master palettes contain a colour swatch for each area to colour. Each swatch stores a colour in precise levels of red, green, blue and opacity (the latter which is referred to as alpha).
Using a master colour palette has many benefits, including:
- Each character consistently retains their dedicated colours.
- You cannot accidentally use a colour which is not in the master palette.
- Standardization and colour consistency throughout the production.
- Multiple artists can use the same colour palette and produce the same results.
Harmony uses palettes to hold all the colours needed to paint your elements, allowing complete control and consistency in the painting process.
A palette is created by assigning a set of colours to each character, prop or effect. You will create a new palette and add a new colour, known as a colour swatch, for each zone of the character, such as the skin, hair, tongue, shirt, pants, and so on.
- From the Colour view menu, select Palettes > New or click the New Palette button.
The Create Palette dialog box opens.
- Enter the palette name according to the model.
- Click OK.
The palette appears in the palette list.
- If you want to create a new colour swatch, click the Add Colour button in the Colour view. If you want to edit an existing colour swatch, select the colour in the Colour view.
- Do one of the following to edit the colour swatch:
- From the Colour view menu, select Colours > Edit.
- Double-click on the colour swatch.
The Colour Picker window opens.
- To set your colour, do one of the following:
- Select either Red, Green, Blue, Hue, Saturarion of Value to change the colour wheel's spectrum, then click on the desired colour in the colour wheel.
- Enter the hue, saturation, value, red, green and blue values manually into their corresponding fields. All values range from 0 to 255.
You can paint the closed zones of your drawings by using the Paint tool.
- In the Timeline or Xsheet view, select the drawing you want to paint.
- In the Tools toolbar, select the Paint tool or press Alt + I.
- In the Colour view, select your character's palette.
- Select a colour from the palette.
- In the Drawing or Camera view, start painting the colours on your drawing.
When painting, you may find that some areas of your drawings were not completely closed due to small gaps in their outlines, which prevents the Paint tool from filling the area as it only fills closed shapes. To close the zone, you can draw a line over the gap with the Brush or Pencil tool. However, it is also possible to close the gap by adding an invisible line over it, which the Paint tool will treat like an ordinary line. In Harmony, invisible lines used to define areas to colour are called strokes.

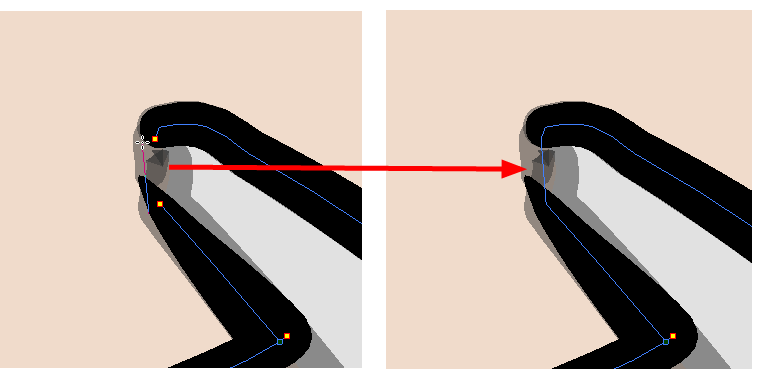

The Close Gap tool lets you close small gaps in a drawing's outline by instantly drawing a stroke to fill the gap. Contrary to the Stroke tool, you do not need to draw with precision when using the Close Gap tool. Simply drawing a crude stroke near the gap will automatically create a straight stroke that connects directly from one end of the gap to the other.
- Before working with strokes, it's recommended to enable the Show Strokes option so that you can see them in the Drawing
or Cameraview. You can enable the Show Strokes option by doing one of the following:
- From the top menu, select View > Show > Show Strokes
- Press K.
- Do one of the following:
- In the Camera
or Drawingview, trace an invisible line near to the gap to be closed.
The gap automatically closes.
