Transparency Layer

T-HFND-010-008

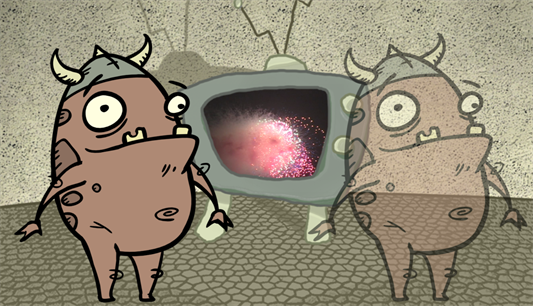

The Transparency effect is used to make an image partially transparent. The Transparency effect is useful when fading images in and out, such as a phantom or to make something partially see-through, such as a window.

Author

Christina Halstead
2D Animator and Character Designer
shadowbrushcreations.com

Refer to the following example to connect this effect:

You can enter a value in the Transparency field or change the transparency value over time by linking it to a function curve. Entering a value of 100 in the Transparency field will make the element 100% transparent, in other words, invisible. Entering a value of 0 will render the element completely opaque.

Properties

Parameter Description
Name

Allows you to enter a name for the node.

Transparency Lets you set the opacity of an element. Values range from 0 to 100. A value of 100 will make the element 100% transparent and a value of 0 will render the element completely opaque.
