Adding a Colour Swatch

1. In the Colour view, click the Add Colour button.

2. Do one of the following to edit the colour swatch:

• From the Colour view menu, select Colours > Edit.
• Double-click on the colour swatch.

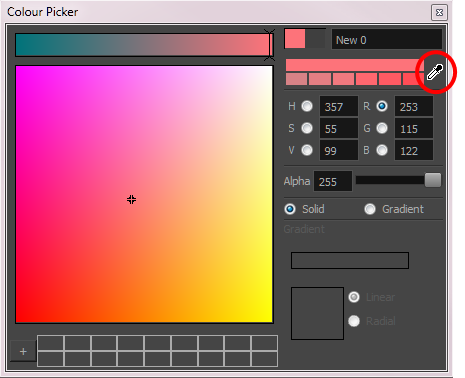

The Colour Picker window opens.

3. To set your colour, do one of the following:

• Select either Red, Green, Blue, Hue, Saturarion of Value to change the colour wheel's spectrum, then click on the desired colour in the colour wheel.
• Enter the hue, saturation, value, red, green and blue values manually into their corresponding fields. All values range from 0 to 255.

• Click the Dropper button to select any colour on your screen. It can be from the Harmony interface, your operating system or any other open application.

4. Click on the Shade Scale swatches to modify the shade of the selected colour.

5. Adjust the transparency with the Alpha slider or type the value directly in the Alpha field.

6. Click the Add button to add the current selected colour to the Colour Storage Library, so you can quickly access it later.

7. Rename the colour swatch in the Colour Picker window or directly in the colour list by double-clicking on its name.
