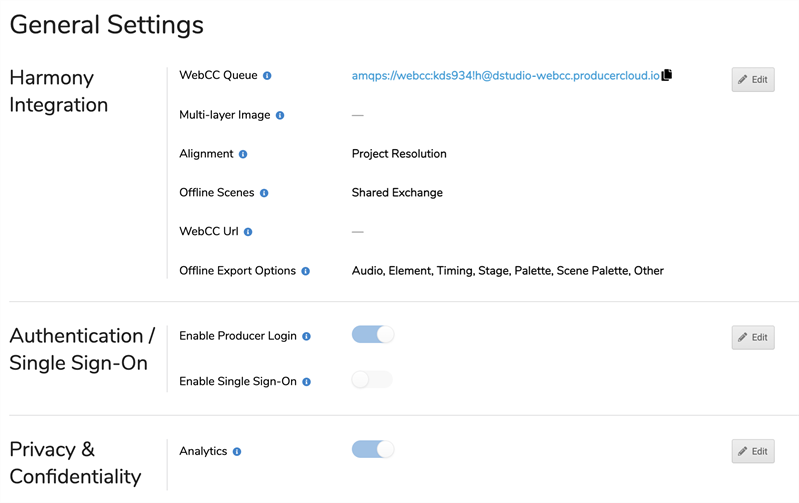

General Settings (Administrator)

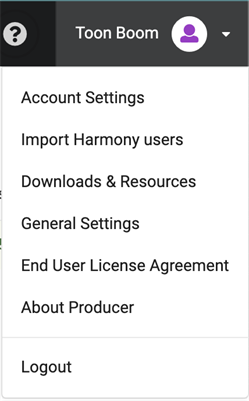

Privileged users (administrators) may view and configure a certain number of site or project wide settings from the main navigation bar > Top Right dropdown > General Settings.

These settings are not available to normal users.

Harmony Integration

Harmony Integration allows configuring preferences when interacting with Harmony.

These settings may be configured per Producer project.

This allows Producer to interact with different Harmony servers, should the need arise.

Option Description
WebCC Queue This is the communication channel between Producer and Harmony, and is used as WebCC startup parameter. Refer to Chapter 9.1 - Working with Harmony Database for more information on configuring WebCC.
Multi-layer Image This option is used when assembling multi-layer image assets (such as .psd files) in Harmony. Depending on the chosen option, Harmony will either create a single image, or multiple images based on layer names when copying or pasting the asset in Harmony scenes. Refer to Chapter 8 - Assembly for more information.
Alignment

This option is used when assembling assets in Harmony.

Available options: project resolution, fit, pan.

Refer to Chapter 8 - Assembly for more information.

Offline Scenes

This option is used for exporting or importing offline scenes when working remotely. It specifies how files will be synchronized between remote users and Harmony server (WebCC).

Options:

  • Shared Exchange: choose this option if files are synchronized via a file sharing mechanism (like a network file system, or Cloud storage solution (Google Drive, Dropbox…).

  • Direct WebCC Connection: choose this option if a direct communication with WebCC is enabled.

Refer to Chapter 9.2. Harmony Integration - Working Remotely.

WebCC Url

When Offline Scenes Exchange mode is set to Direct WebCC Connection, specify the url address of WebCC. This address must be accessible to the users working remotely, and it is highly recommended that it is used through a Virtual Private Network.

If Shared Exchange option is chosen, this field may be left empty.

Refer to Chapter 9.2. Harmony Integration - Working Remotely.

Offline Export Options

This specifies the default options used when exporting a scene while working remotely.

These options will be used when clicking on the “Open In Harmony” button from the Production, Assets or Open Tasks pages, or when exporting from Producer Link. These options can be overridden from the More > Export Offline dialog. To export scripts or master controllers, make sure “Other” option is selected.

Authentication / Single Sign-On

Authentication settings are set globally, and are the same for all projects and users.

Three authentication modes are supported in Producer:

  • Producer Built-In Login/Password

  • OpenID Connect (OIDC)

  • Security Assertion Markup Language (SAML)

OIDC and SAML are two widely used protocols which allow authorizing users to use an application (in this case: Producer) via an external authentication and identity provider service.

Producer Built-In Login

To enable Producer Login, simply ensure that the option is selected.

NOTE Producer Login cannot be disabled if no Single Sign-On method is specified. Even if disabled, Producer login and password will still be used in Producer Link and Harmony Scripts.

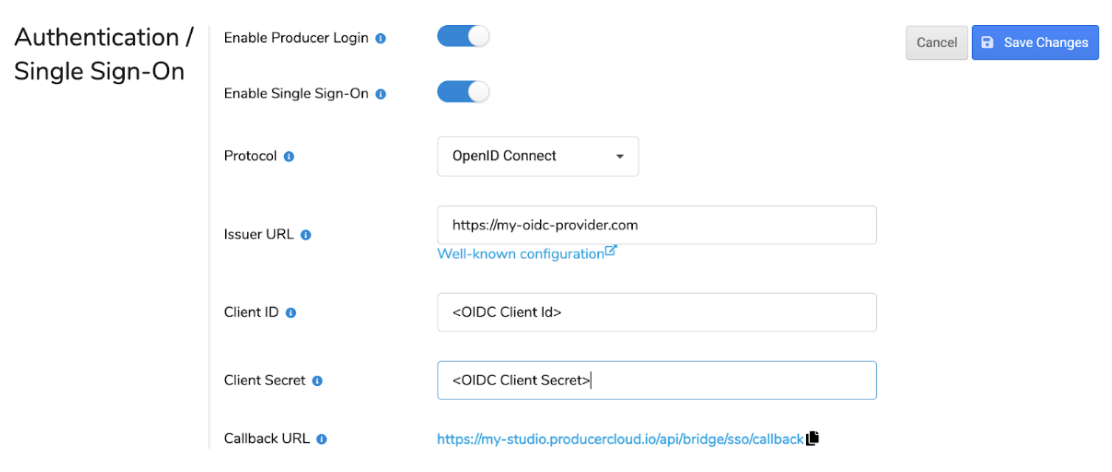

OpenID Connect (OIDC)

Before proceeding, verify with Producer’s Customer Service and your own IT department that the chosen provider is supported.

Option Description
Protocol Single Sign-On protocol: OIDC or SAML
Issuer URL

OIDC provider issued. This URL is the base address of the OIDC service provider (and should be retrieved from this service).

If properly configured, the Well-known configuration link underneath should open a valid file containing addresses (endpoints) to perform various operations.
Client ID OIDC provider issued. Copy this option from your OIDC provider configuration.
Client Secret OIDC provider issued. Copy this option from your OIDC provider configuration.
Callback URL Producer issued. Add this url to the list of authorized callback urls in your OIDC provider configuration. Once authenticated by the OIDC service, clients will be redirected to this Producer url, and authenticated in Producer.
IMPORTANT The same email address must be set in Producer and in the OIDC service provider to allow authentication.

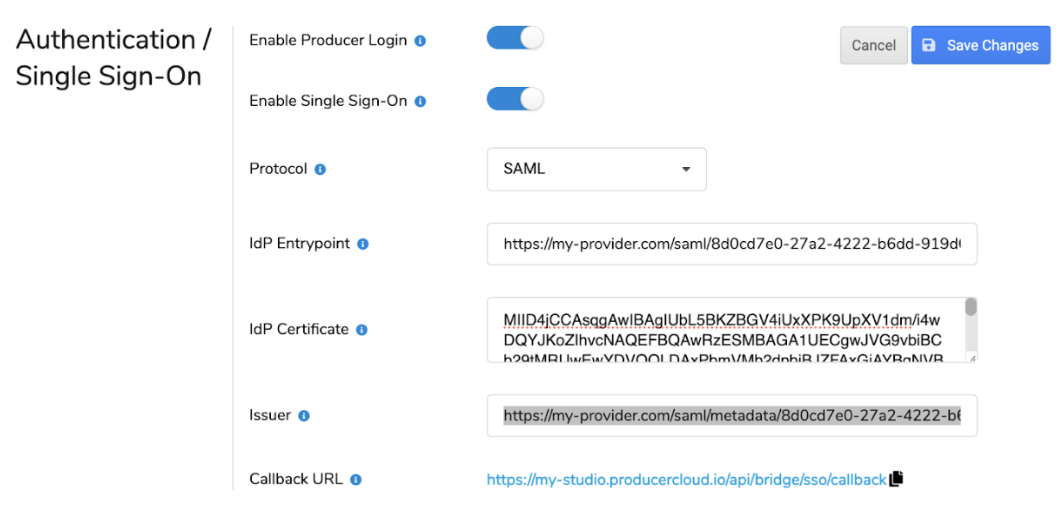

SAML

Option Description
Protocol Single Sign-On protocol: SAML
IdP Entrypoint SAML provider issued. Identity Provider (IdP) entrypoint URL.
IdP Certificate SAML provider issued. Identity Provider (IdP) base 64 encoded certificate. Must be entered on a single line.
Issuer A unique identifier shared between Producer and SAML Identity Provider (IdP). It may be issued by IdP, or you may choose your own.
Callback URL Producer issued. Add this url to the list of authorized callback urls in your SAML provider configuration. Once authenticated by the SAML service, users will be redirected to this Producer url, and authenticated in Producer.

How-To

  1. Click on the “Edit” button

  2. Enable Single Sign-On

  3. Protocol: Select OpenID Connect.

  4. Fill-in OIDC provider issued settings: Issuer URL, Client ID, Client Secret

  5. Copy Producer Callback URL and add it to your OIDC provider administration interface list of callback URLs

  6. Click on “Save Changes” button

    (To cancel, click “Cancel”...)

  7. Click on “Save Changes” button.

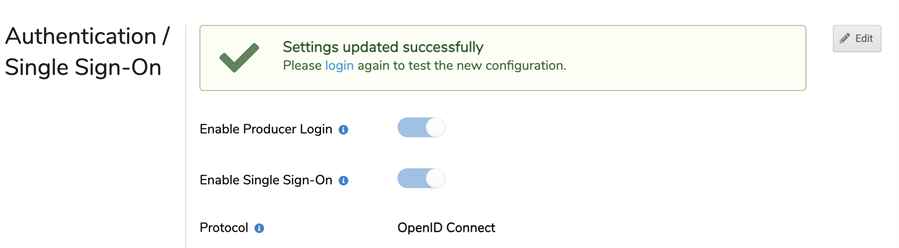

  8. Upon successfully saving, administrator will be asked to verify the new login settings. See Validating Single Sign-On configuration.

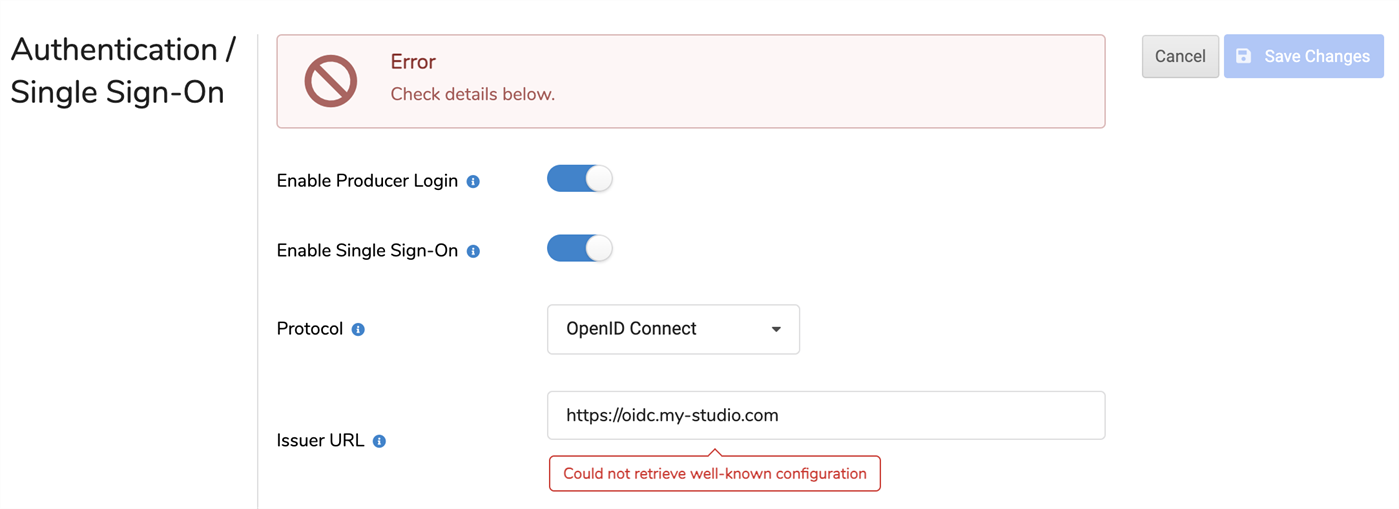

    If an error is encountered, an error will be displayed instead:

  1. Click on the “Edit” button.

  2. Enable Single Sign-On.

  3. Protocol: Select SAML.

  4. Fill-in SAML provider issued settings: Entrypoint, Certificate (and potentially: Issuer).

  5. Copy Producer Callback URL and add it to your SAML provider administration interface list of callback URLs

  6. Click on “Save Changes” button

    (To cancel, click “Cancel”...)

  7. Click on “Save Changes” button.

  8. Upon successfully saving, user will be asked to verify the new login settings. See Validating Single Sign-On configuration.

    Any error filling in or saving settings will be displayed on screen.

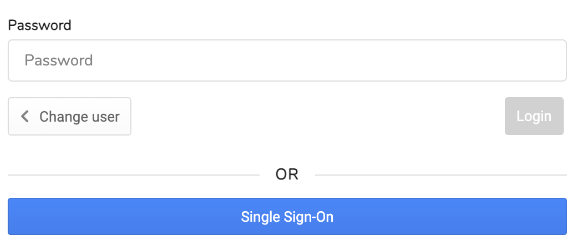

  1. Upon clicking on the login link, the administrator will be redirected to Producer Login page. After filling-in their username, they will be prompted for their Producer password, or given the option to use Single Sign-On.

  2. Click on “Single Sign-On” button. User should be redirected to the chosen Single Sign-On Service. If successful, user will be automatically logged in Producer.

  3. After a successful login, the administrator may go back to the General Settings page and disable Producer Login.

    NOTE The same login options apply to all users, except administrators.

Privacy & Confidentiality

A single setting is currently available.

Option Description
Analytics

Authorizes tracking of users actions in Producer Web Interface and Producer Link. This option is enabled by default.

No personal information is recorded.

Refer to Toon Boom End User License Agreement and general policies for more information.
